Linear
Sigma II Corner LED T 36W 3070lm 930 OPAL White EM1H ST TH5
New LED lighting system designed for inline installation. It’s an elegant and efficient luminaire for lighting offices, conference rooms, receptions and other working spaces.
Linear
Sigma II Corner LED T 36W 3070lm 930 OPAL White EM1H ST TH5
New LED lighting system designed for inline installation. It’s an elegant and efficient luminaire for lighting offices, conference rooms, receptions and other working spaces.
LED
DI
IP30
I
yes
yes
yes
Basic information:
Index:
AS002.1111.930.A120
EAN:
5904312464992
Accessories:
Sigma II End cap PC, Sigma II LED Blank infill, Electric suspension kit, Sigma II/Sigma II GK/Velo/VIP/VIP GK Linear joining set, Suspension kit 1x
Power:
220 ... 240  V
Categorization:
Technical data
Sigma II Corner LED T 36W 3070lm 930 OPAL White EM1H ST TH5
PRODUCT CODE
AS002.1111.930.A120
Copy the code
PRODUCT EAN
5904312464992
Copy the EAN code
Mechanical data
Housing material Aluminum
Designed for light-line yes
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
UGR 15
Electrical data
Light source LED
Luminaire power 36 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring TH5
Type of driver ON/OFF
Emergency module EM1H ST
Motion sensor No
Information data
Net weight 3.9 kg
Colour White
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 3070 lm
Luminaire's luminous efficacy 85 lm/W
Color rendering index 90

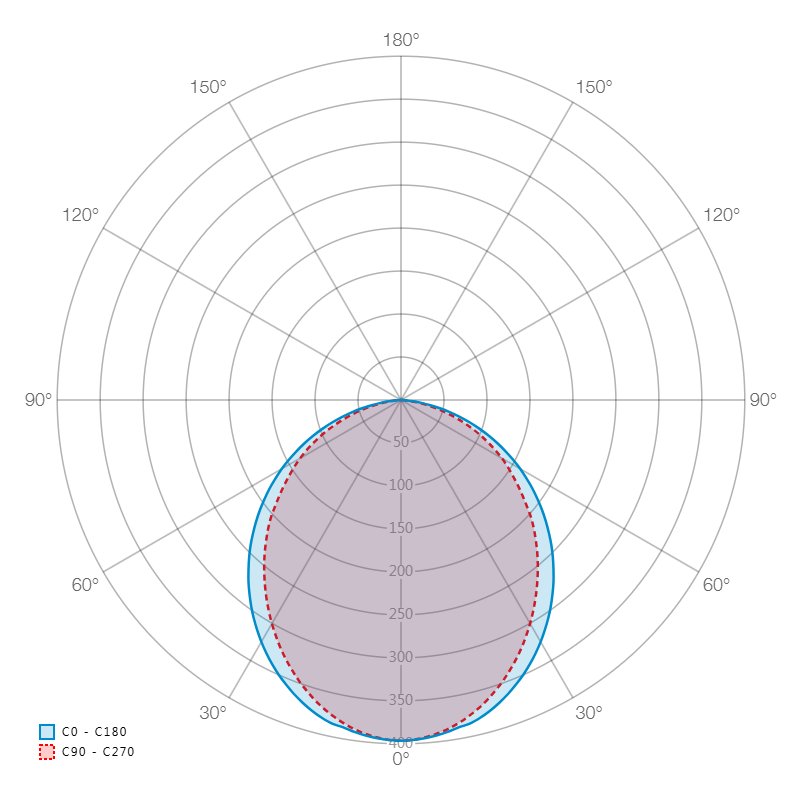

Light distribution DI
Colour temperature 3000K
CRI & colour temperature 930
Certificates
Degree of protection (IP) IP30
Impact resistance IK04
Class of protection I
Light source protection yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W
1117 mm 530 mm
L - Length
W - Width
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
312.94 KB
Download
EC Declaration of conformity
Download
