New LED lighting system designed for inline installation. Sigma LED has been produced for multiple types of diffusors with an emphasis on simplicity of mounting. Sigma system uses modern solution designed by PXF Lighting, merging benefits of LED and traditional louvers, reducing glare rate of the luminaries. It’s an elegant and efficient luminaire for lighting offices, conference rooms, receptions and other working spaces. Attention: possibility of mounting "Active+" - self-learning energy saving system. Active+ is an out-of-the-box standalone solution consisting of an LED driver and small sensor built into the luminaire. Luminaires fitted with Active+ solution are ideal for refurbishment projects, as well as for new offices, corridors, open plan areas, etc.
| Type of installation | Universal |
| Housing material | Aluminum |
| Louver/ diffuser | OPAL |
| Diffuser colour | White |
| Diffuser material | Opal/mat plastic |
| UGR | 22 |
| Light source | LED |
| Luminaire power | 17 W |
| Number of light sources | 1 |
| Type of equipment | AC |
| Voltage rating | 220 ... 240 V |
| Through wiring | No |
| Light source included | yes |
| Type of driver | DALI |
| Emergency module | No |
| Motion sensor | No |
| Net weight | 1.5 kg |
| Colour | White |
| Operating temperature range | -20 ... 40 |
| Power and luminous flux tolerance | +/-10% |
| Luminaire luminous flux | 1530 lm |
| Luminaire's luminous efficacy | 90 lm/W |
| Luminaire's luminous efficiency | 80 |
| Light colour | White |
| Color rendering index | 80 |
| Direct-/indirect independently controlled | yes |

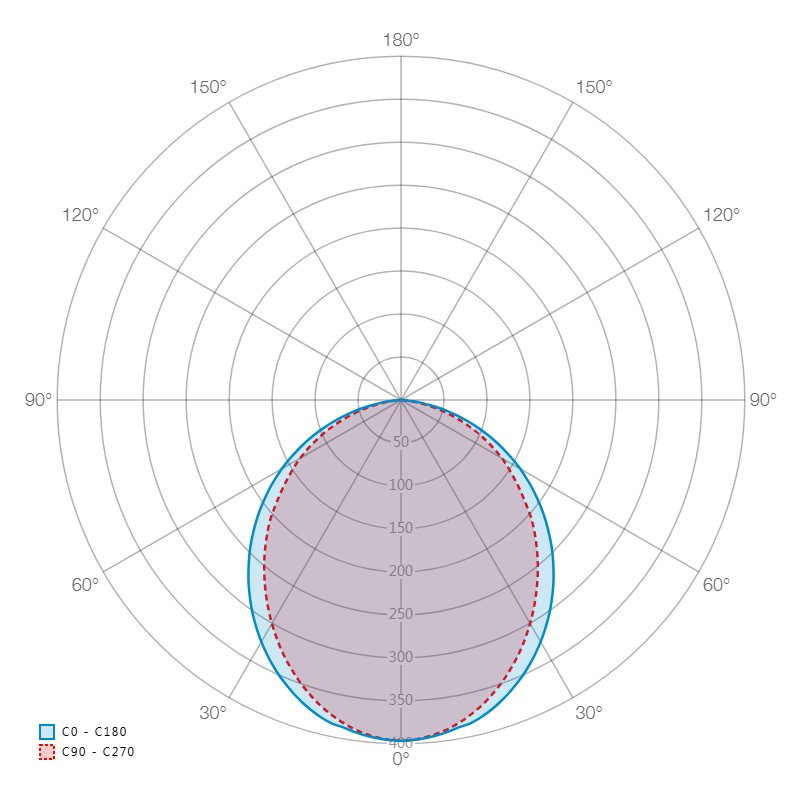

| Light distribution | DI |
| Class of luminaire | I |
| Light output degradation | B10 |
| Lumen maintenance | L80 |
| MacAdam | SDCM 3 |
| Lamp Lumen Maintenance Factor (after 60 000h) | 85 % |
| Colour temperature | 2700-6500K |
| CRI & colour temperature | 8TW |
| Degree of protection (IP) | IP30 |
| Impact resistance | IK04 |
| Class of protection | I |
| Light source protection | yes |
| CE | yes |
| HACCP+ | yes |
| EAC | yes |
| L | W | H |
|---|---|---|
| 545 mm | 57 mm | 75 mm |
