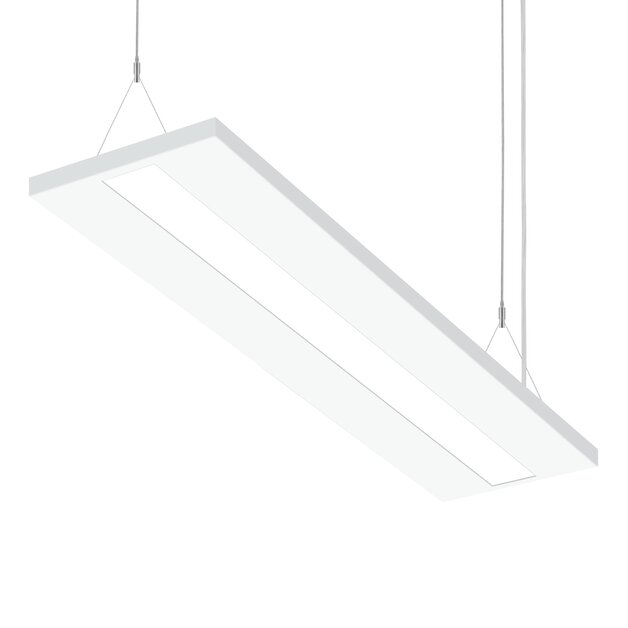

Sun Pendant LED

Modular

Sun Pendant LED

Go to the variant list (594)

LED

yes

yes

yes

Basic information:

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Modular

Application:

Production hall, Office, Conference room, Corridor and staircase, Commercial premises, Lecture hall, Classroom, Computer lab, Cloak room, Security, Social room

Mounting type:

Pendant

Technical data:

Luminaire power:

30 W

Luminaire luminous flux:

3070 - 3760 lm

Length:

596 mm, 1196 mm

See other technical data

Technical data

Mechanical data

Type of installation	Suspended
Housing material	Steel sheet
Designed for light-line	yes

Optical data

Louver/ diffuser	MPRM
Diffuser colour	Transparent
Diffuser material	Prismatic plastic
Reflector	high gloss
UGR	15, 19

Electrical data

Light source	LED
Luminaire power	30 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Light source included	yes
Power factor	0.97
Type of driver	DALI, HE, HO, ON/OFF
Emergency module	opcjonalnie
Motion sensor	opcjonalnie

Information data

Net weight	4.3 - 4.9 kg
Colour	Black, Grey, White
Dimmable	opcjonalnie
Power and luminous flux tolerance	+/-10%
Info	Suspended 1196x296, Suspended 600x600, Zwieszany 1200x330, Zwieszany 600x600

Light data

Luminaire luminous flux	3070 - 3760 lm
Luminaire's luminous efficacy	102 - 125 lm/W
Luminaire's luminous efficiency	81 - 83
Light colour	White
Color rendering index	80, 90
Direct-/indirect independently controlled	no
Light distribution	Średniostrumieniowy
Light distribution	DI
Class of luminaire	I
Light output degradation	B10
Lumen maintenance	L80
Lifetime	54000 h
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	85 %
Colour temperature	2700-6500K, 3000K, 4000K
CRI & colour temperature	830, 840, 8TW, 930, 940

Certificates

Degree of protection (IP)	IP20, IP40
Impact resistance	IK04
Class of protection	I
Light source protection	yes
PZH	yes
CE	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D HO /DRIVER WITH PREDEFINED SETTING/

H DSI

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

X 1-10V /ADJUSTABLE/

S DMX

V sDIMM

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Układ optyczny]	CRI & colour temperature	Colour	Type of driver	Emergency module	Through wiring	Motion sensor	Type of family
CL001.1122.830.A000 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	ON/OFF	No	No	No	600x600
CL001.1122.830.A020 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	ON/OFF	No	TH5	No	600x600
CL001.1122.830.A040 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	ON/OFF		WI		600x600
CL001.1122.830.A100 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	ON/OFF	EM1H ST	No	No	600x600
CL001.1122.830.A120 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	ON/OFF	EM1H ST	TH5	No	600x600
CL001.1122.830.A140 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	ON/OFF	EM1H ST	WI		600x600
CL001.1122.830.A200 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	ON/OFF	EM3H ST	No	No	600x600
CL001.1122.830.A220 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	ON/OFF	EM3H ST	TH5	No	600x600
CL001.1122.830.A240 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	ON/OFF	EM3H ST	WI		600x600
CL001.1122.830.D000 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	DALI	No	No	No	600x600
CL001.1122.830.D020 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	DALI	No	TH5	No	600x600
CL001.1122.830.D040 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	DALI		WI		600x600
CL001.1122.830.D100 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	DALI	EM1H ST	No	No	600x600
CL001.1122.830.D120 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	DALI	EM1H ST	TH5	No	600x600
CL001.1122.830.D140 Copy the code Open in new window	30 W	3610 lm	120 lm/W	MPRM	830	White	DALI	EM1H ST	WI		600x600

Displaying items: 15 of 594

of 40

per page

Photometric file

5.22 KB

Download

EC Declaration of conformity

Download

Karta rodziny

Download

Pobierz wszystkie pliki

Electric elements

Electric suspension kit

Electric suspension kit - Y

Installation elements

Suspension kit 1x

Suspension kit 1x - Y
