Technical data Download
Industrial
Titan LED 600 45° 42W 6320lm 830 LNS Grey WI
Modern, hermetic luminaire with multiple functions. Perfect for lighting aisles, passageways, storage areas, warehouses and all types of industrial spaces. TITAN LED is equipped with the latest generation of LED sources closed in the aesthetic, aluminum housing with IP66 degree of protection. Easy installation and smooth adjustment of fasteners spacing.
Industrial
Titan LED 600 45° 42W 6320lm 830 LNS Grey WI
Modern, hermetic luminaire with multiple functions. Perfect for lighting aisles, passageways, storage areas, warehouses and all types of industrial spaces. TITAN LED is equipped with the latest generation of LED sources closed in the aesthetic, aluminum housing with IP66 degree of protection. Easy installation and smooth adjustment of fasteners spacing.
LED
DI
IP66
IK10
I
yes
yes
yes
Basic information:
Index:
AY001.2277.830.A040
EAN:
5907671365009
Installation:
suspended, surface mounted
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Industrial
Application:
Laboratory, Garage, Technical room, Security, Social room, Sport facilities, Parking and garage, Arcade, Car park, Sport field
Mounting type:
Ceiling mounted, Pendant
Technical data
Titan LED 600 45° 42W 6320lm 830 LNS Grey WI
PRODUCT CODE
AY001.2277.830.A040
Copy the code
PRODUCT EAN
5907671365009
Copy the EAN code
Mechanical data
Type of installation Universal
Housing material Aluminum
Designed for light-line yes
Optical data
Louver/ diffuser LNS
UGR 22
Electrical data
Light source LED
Luminaire power 42 W
Number of light sources 1
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring WI
Light source included yes
Type of driver ON/OFF
Emergency module No
Motion sensor No
Connection block 3 PIN
Information data
Net weight 2.5 kg
Colour Grey
Power and luminous flux tolerance +/-10%
Info SH

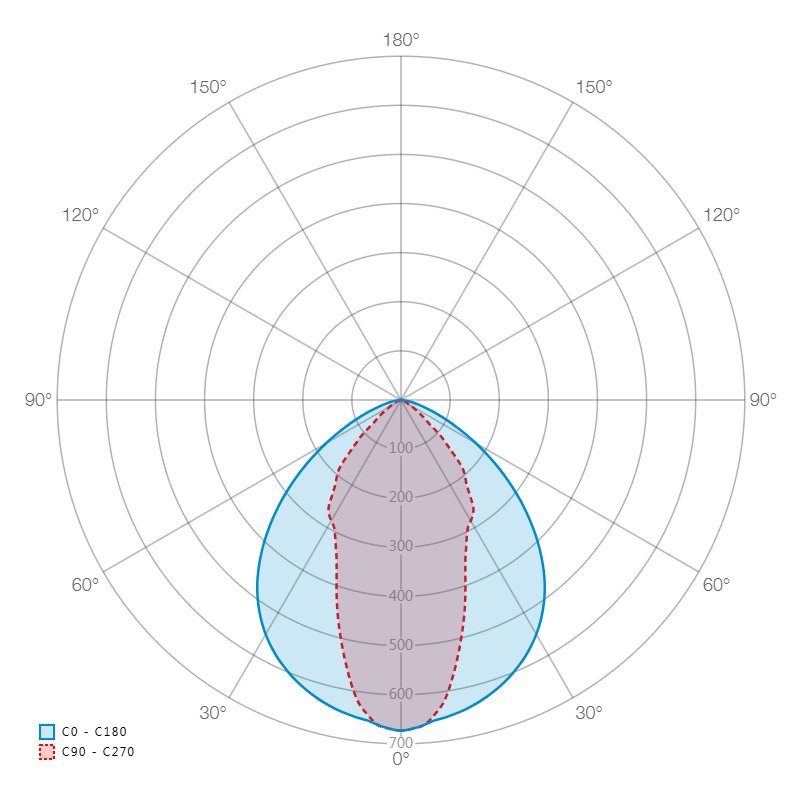

Light data
Luminaire luminous flux 6320 lm
Luminaire's luminous efficacy 150 lm/W
Luminaire's luminous efficiency 0.9
Light colour White
Color rendering index 80
Light distribution Średniostrumieniowy
Light distribution DI
Class of luminaire I
Beam angle 45°
Light output degradation B10
Lumen maintenance L80
Lifetime 54000 h
MacAdam SDCM 3
L80/B10 przy 25°C żywotność znamionowa [h] 54000 h
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) IP66
Impact resistance IK10
Class of protection I
Light source protection yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W H
600 mm 64 mm 64 mm
L - Length
W - Width
H - Height / Depth
