Industrial
Torino Sport LED 1226x276 50W 6000lm 830 PAR White DALI EM3H ST
A modern luminaires with high optical and technical parameters designed for sports facilities (for example: tennis and squash courts). Characterized by symmetrically placed aluminum louvers and protection grid. The luminaire has IK10 degree of impact resistance. Torino Sport LED is certified for IK and against ball throwing (DIN 18032-3:1997-04 and DIN EN 13964:2014-08)
Image for the product family
Industrial
Torino Sport LED 1226x276 50W 6000lm 830 PAR White DALI EM3H ST
A modern luminaires with high optical and technical parameters designed for sports facilities (for example: tennis and squash courts). Characterized by symmetrically placed aluminum louvers and protection grid. The luminaire has IK10 degree of impact resistance. Torino Sport LED is certified for IK and against ball throwing (DIN 18032-3:1997-04 and DIN EN 13964:2014-08)
LED
DI
IP20
IK10
I
yes
yes
yes
yes
Basic information:
Index:
CS001.1133.830.D200
EAN:
5904349061584
Accessories:
Torino Sport LED Chain Suspension set, Torino Sport LED 4x Zawieszenie łańcuchowe
Installation:
Surface mounted.
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Application:
Mounting type:
Technical data
Torino Sport LED 1226x276 50W 6000lm 830 PAR White DALI EM3H ST
PRODUCT CODE
CS001.1133.830.D200
Copy the code
PRODUCT EAN
5904349061584
Copy the EAN code
Mechanical data
Housing material Steel sheet
Optical data
Louver/ diffuser PAR
Diffuser colour Transparent
Diffuser material Prismatic plastic
Louver material Aluminum
Reflector high gloss
UGR 20
Electrical data
Light source LED
Luminaire power 50 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver DALI
Emergency module EM3H ST
Motion sensor No
Information data
Net weight 9.5 kg
Colour White
Power and luminous flux tolerance +/-10%

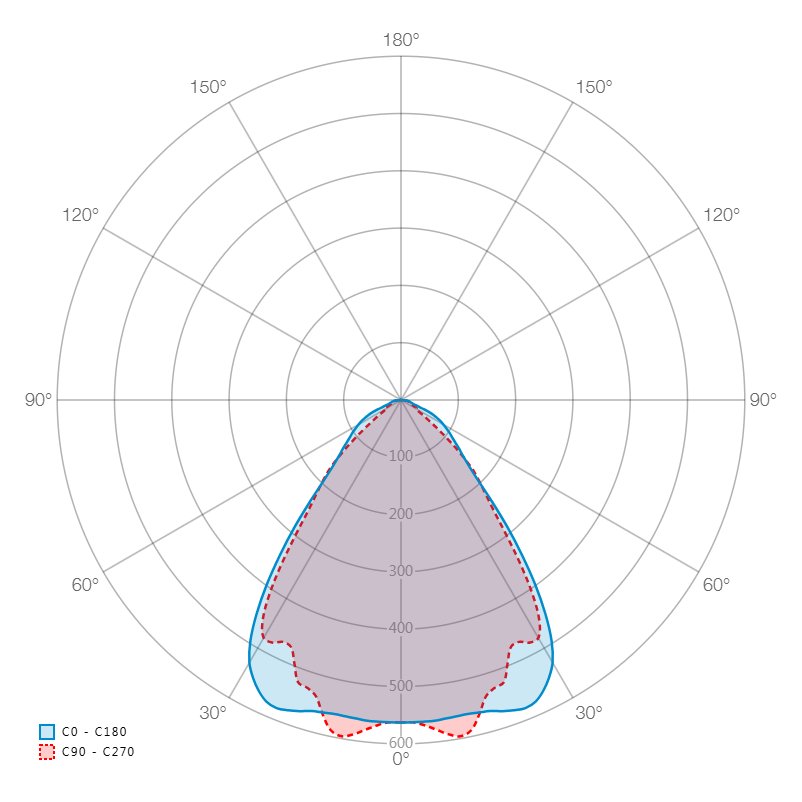

Light data
Luminaire luminous flux 6000 lm
Luminaire's luminous efficacy 120 lm/W
Color rendering index 80
Light distribution DI
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) IP20
Impact resistance IK10
Class of protection I
Light source protection no
CE yes
HACCP+ yes
BALL TEST yes
EAC yes
Dimensions
L W
1226 mm 276 mm
L - Length
W - Width
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
473.46 KB
Download
EC Declaration of conformity
Download
Pobierz wszystkie pliki
