Image for the product family
Architectural
Tubo Bollard LED 360mm 360° 5W 450lm 840 RM Antracyt STD
Luminaire designed for LED light sources in the form of a round pillar. Perfect solution for discreet lighting of building surroundings, paths and gardens.
LED
DI
IP65
IK08
I
yes
yes
yes
Basic information:
Index:
BD001.4467.840.A000
EAN:
5907671352306
Accessories:
Tubo Bollard LED pole, Tubo Bollard LED Base
Installation:
in- ground
Power:
220 ... 240  V
Categorization:
Technical data
Tubo Bollard LED 360mm 360° 5W 450lm 840 RM Antracyt STD
PRODUCT CODE
BD001.4467.840.A000
Copy the code
PRODUCT EAN
5907671352306
Copy the EAN code
Mechanical data
Housing material Aluminum
Optical data
Louver/ diffuser RM
Reflector metallic
UGR 24
Electrical data
Light source LED
Luminaire power 5 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Power factor 0.96
Type of driver ON/OFF
SELV yes
Emergency module No
Motion sensor No
Information data
Net weight 1.6 kg
Colour Anthracite
Operating temperature range -20 ... 40
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 450 lm
Luminaire's luminous efficacy 90 lm/W
Luminaire's luminous efficiency 64
Light colour White
Color rendering index 80

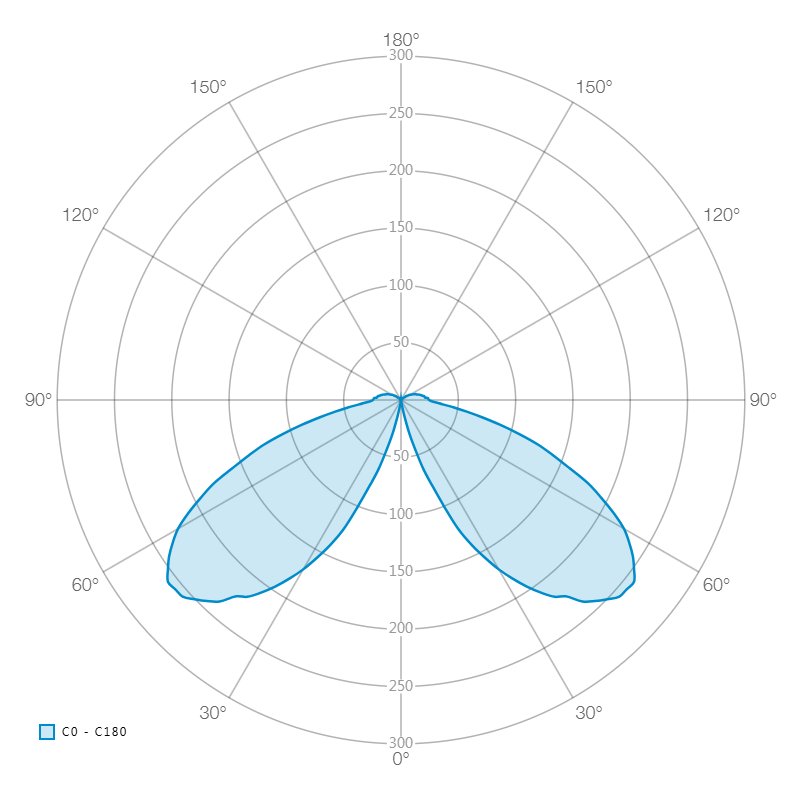

Light distribution DI
Beam angle 360°
Light output degradation B10
Lumen maintenance L80
Lifetime 54000 h
MacAdam SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 4000K
CRI & colour temperature 840
Certificates
Degree of protection (IP) IP65
Impact resistance IK08
Class of protection I
Power Flicker =< 3%
CE yes
HACCP+ yes
EAC yes
Dimensions
L H F
360 mm 360 mm 80 mm
L - Length
H - Height / Depth
F - Outer diameter
Download
Product card
Download
Installation manual
326.69 KB
Download
EC Declaration of conformity
265.76 KB
Download
