Architectural
Tubo Bollard LED 2x90° 5W 265lm 830 RM Anthracite STD
Luminaire designed for LED light sources in the form of a round pillar. Perfect solution for discreet lighting of building surroundings, paths and gardens.
Image for the product family
Architectural
Tubo Bollard LED 2x90° 5W 265lm 830 RM Anthracite STD
Luminaire designed for LED light sources in the form of a round pillar. Perfect solution for discreet lighting of building surroundings, paths and gardens.
LED
DI
IP65
IK08
I
yes
yes
yes
Basic information:
Index:
BD003.4467.830.A000
EAN:
5907671352337
Accessories:
Tubo Bollard LED pole, Tubo Bollard LED Base
Installation:
in- ground
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Architectural
Application:
Apartment building environment, Building environment, Car park, Park, Sport field
Mounting type:
Bollard
Technical data Download Accessories
Technical data
Tubo Bollard LED 2x90° 5W 265lm 830 RM Anthracite STD
PRODUCT CODE
BD003.4467.830.A000
Copy the code
PRODUCT EAN
5907671352337
Copy the EAN code
Mechanical data
Housing material Aluminum
Optical data
Louver/ diffuser RM
Reflector metallic
UGR 25
Electrical data
Light source LED
Luminaire power 5 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Power factor 0.96
Type of driver ON/OFF
SELV yes
Emergency module No
Motion sensor No
Information data
Net weight 1.6 kg
Colour Anthracite
Operating temperature range -20 ... 40
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 265 lm
Luminaire's luminous efficacy 53 lm/W
Luminaire's luminous efficiency 39
Light colour White
Color rendering index 80

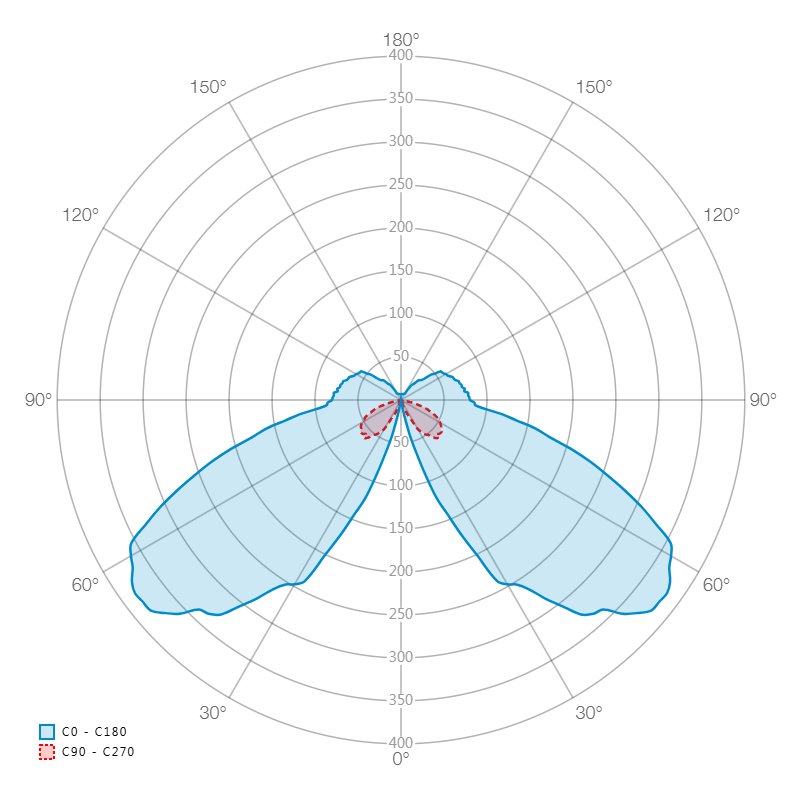

Light distribution DI
Beam angle 90°
Light output degradation B10
Lumen maintenance L80
Lifetime 54000 h
MacAdam SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) IP65
Impact resistance IK08
Class of protection I
Power Flicker =< 3%
CE yes
HACCP+ yes
EAC yes
Dimensions
L H F
360 mm 360 mm 80 mm
L - Length
H - Height / Depth
F - Outer diameter
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
326.69 KB
Download
EC Declaration of conformity
Download
Photometric file
3.87 KB
Download
Pobierz wszystkie pliki
Structural elements
Accessories
Tubo Bollard LED pole
Installation elements
Accessories
Tubo Bollard LED Base
