Technical data Download
Downlight

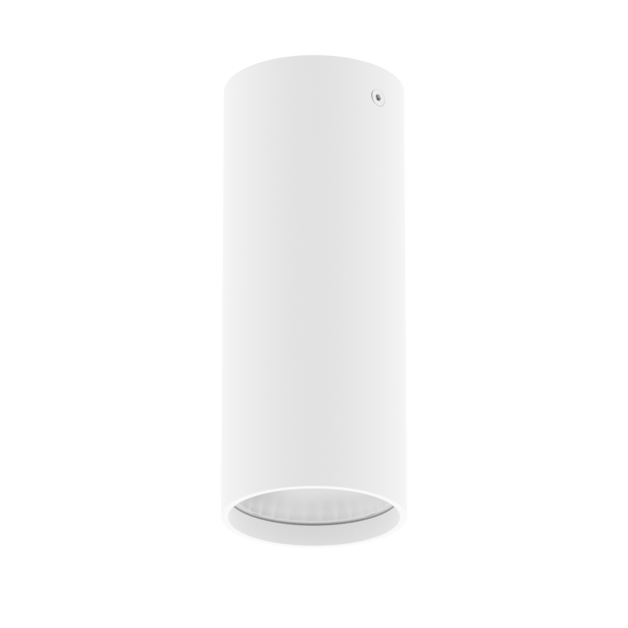

Tubo NT LED 30° 15W 1420lm 830 RF White
Ceiling mounted LED luminaire with subtle design for representative rooms. Possibility of painting in any RAL colour.
Image for the product family
Downlight
Tubo NT LED 30° 15W 1420lm 830 RF White
Ceiling mounted LED luminaire with subtle design for representative rooms. Possibility of painting in any RAL colour.
LED
DI
IP20
IK10
I
yes
yes
yes
Basic information:
Index:
BA001.1166.830.A000
EAN:
5904312506067
Installation:
Ceiling mounted
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Downlight
Application:
Corridor and staircase, Office, Reception
Mounting type:
Ceiling mounted
Technical data
Tubo NT LED 30° 15W 1420lm 830 RF White
PRODUCT CODE
BA001.1166.830.A000
Copy the code
PRODUCT EAN
5904312506067
Copy the EAN code
Mechanical data
Housing material Aluminum
Optical data
Louver/ diffuser RF
Reflector high gloss
UGR 18
Electrical data
Light source LED
Luminaire power 15 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 0.8 kg
Colour White
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 1420 lm
Luminaire's luminous efficacy 95 lm/W
Color rendering index 80
Light distribution DI
Beam angle 30°
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) IP20
Impact resistance IK10
Class of protection I
CE yes
HACCP+ yes
EAC yes
Dimensions
L F
200 mm 80 mm
L - Length
F - Outer diameter
Download
Installation manual
541.52 KB
Download
Product card
Download
Pobierz wszystkie pliki
