Downlight

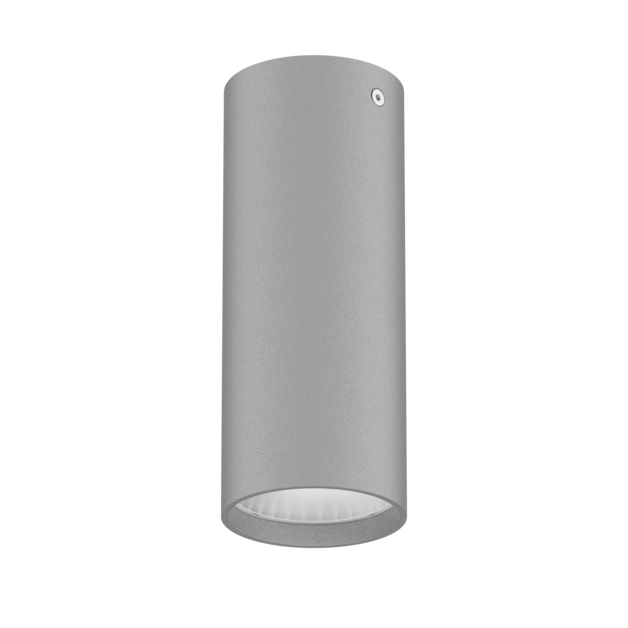

Tubo NT LED 30° 15W 1420lm 830 RF Grey DALI
Ceiling mounted LED luminaire with subtle design for representative rooms. Possibility of painting in any RAL colour.
Downlight
Tubo NT LED 30° 15W 1420lm 830 RF Grey DALI
Ceiling mounted LED luminaire with subtle design for representative rooms. Possibility of painting in any RAL colour.
LED
DI
IP20
IK10
I
yes
yes
yes
Basic information:
Index:
BA001.2266.830.D000
EAN:
5904312506111
Installation:
Ceiling mounted
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Downlight
Application:
Corridor and staircase, Office, Reception
Mounting type:
Ceiling mounted
Technical data Download
Technical data
Tubo NT LED 30° 15W 1420lm 830 RF Grey DALI
PRODUCT CODE
BA001.2266.830.D000
Copy the code
PRODUCT EAN
5904312506111
Copy the EAN code
Mechanical data
Housing material Aluminum
Optical data
Louver/ diffuser RF
Reflector high gloss
UGR 18
Electrical data
Light source LED
Luminaire power 15 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver DALI
Emergency module No
Motion sensor No
Information data
Net weight 0.8 kg
Colour Grey
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 1420 lm
Luminaire's luminous efficacy 95 lm/W
Color rendering index 80
Light distribution DI
Beam angle 30°
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) IP20
Impact resistance IK10
Class of protection I
CE yes
HACCP+ yes
EAC yes
Dimensions
L F
200 mm 80 mm
L - Length
F - Outer diameter
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
541.52 KB
Download
EC Declaration of conformity
Download
