Via LED AS II Class 18W 2910lm 730 LNS Szary

Street

Modern LED luminaire dedicated for street lighting. High luminaire's luminous efficacy and luminous flux. Energy saving LED technology. Optics: AS - asymmetric, ST - street, PC - pedestrian crossings Available on request: DALI, 1-10V, Casambi; knife switch, DW light distribution and other optics; possibility of painting in any color from RAL palette (RAL 7046 in standard); additional overvoltage protection is available up to 10 kV; extended warranty; control: interval TimeDIM, lowered voltage recognition system with flux and power reduction function VoltIN, CLO (Constant Lumen Output) - solutions may involve a change in power consumption and lifespan during long operation

Basic information:

Index:

HL001.2277.730.A000

EAN:

5904349195340

Installation:

pole mounted, positions of arrangment: horizontal +/-10° (step 5°), vertical 0-20° (step 5°)

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Street

Application:

Building environment, Street, Car park, Park, Apartment building environment

Mounting type:

Post luminaires

L	W	H
548 mm	230 mm	126 mm

548 mm

230 mm

126 mm

Type of installation	Do słupa
Housing material	Die cast aluminum

Light source	LED
Luminaire power	18 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Light source included	yes
Power factor	0.96
Type of driver	ON/OFF
Emergency module	No
Motion sensor	No

Net weight	4.1 kg
Colour	Grey
Power and luminous flux tolerance	+/-10%
Inne	ULOR 0%; DLOR 100%
Info	AS

Luminaire luminous flux	2910 lm
Luminaire's luminous efficacy	162 lm/W
Light colour	White
Color rendering index	70

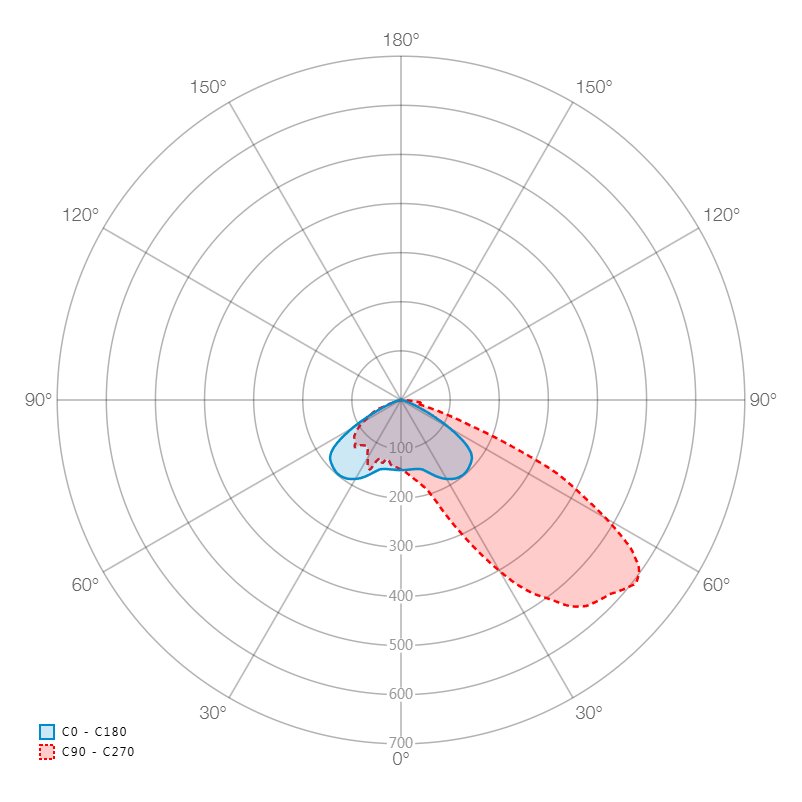

Light distribution	DI
Light output degradation	B10
Lumen maintenance	L90
MacAdam	SDCM 3
Colour temperature	3000K
CRI & colour temperature	730

Degree of protection (IP)	IP65
Impact resistance	IK08
Class of protection	II
Light source protection	yes
CE	yes
HACCP+	yes
EAC	yes

Louver/ diffuser	LNS
Optical system	AS
