Via LED AS II Class 18W 3080lm 740 LNS Czarny

Image for the product family

Street

Modern LED luminaire dedicated for street lighting. High luminaire's luminous efficacy and luminous flux. Energy saving LED technology. Optics: AS - asymmetric, ST - street, PC - pedestrian crossings Available on request: DALI, 1-10V, Casambi; knife switch, DW light distribution and other optics; possibility of painting in any color from RAL palette (RAL 7046 in standard); additional overvoltage protection is available up to 10 kV; extended warranty; control: interval TimeDIM, lowered voltage recognition system with flux and power reduction function VoltIN, CLO (Constant Lumen Output) - solutions may involve a change in power consumption and lifespan during long operation

Basic information:

Index:

HL001.3377.740.A000

EAN:

5904349215987

Installation:

pole mounted, positions of arrangment: horizontal +/-10° (step 5°), vertical 0-20° (step 5°)

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Street

Application:

Building environment, Street, Car park, Park, Apartment building environment

Mounting type:

Post luminaires

L	W
548 mm	230 mm

548 mm

230 mm

Type of installation	Do słupa
Housing material	Die cast aluminum

Light source	LED
Luminaire power	18 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Type of driver	ON/OFF
Emergency module	No
Motion sensor	No

Net weight	4.1 kg
Colour	Black
Power and luminous flux tolerance	+/-10%

Luminaire luminous flux	3080 lm
Luminaire's luminous efficacy	171 lm/W
Color rendering index	70

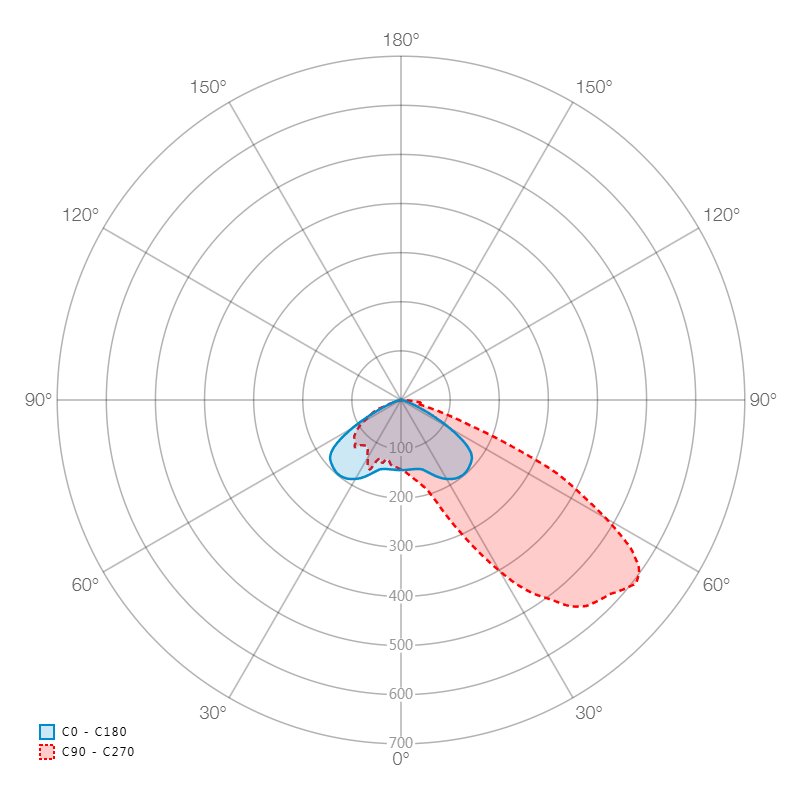

Light distribution	DI
Colour temperature	4000K
CRI & colour temperature	740

Degree of protection (IP)	IP65
Class of protection	II
Light source protection	yes
CE	yes
HACCP+	yes
EAC	yes

Louver/ diffuser	LNS
Optical system	AS
