Linear

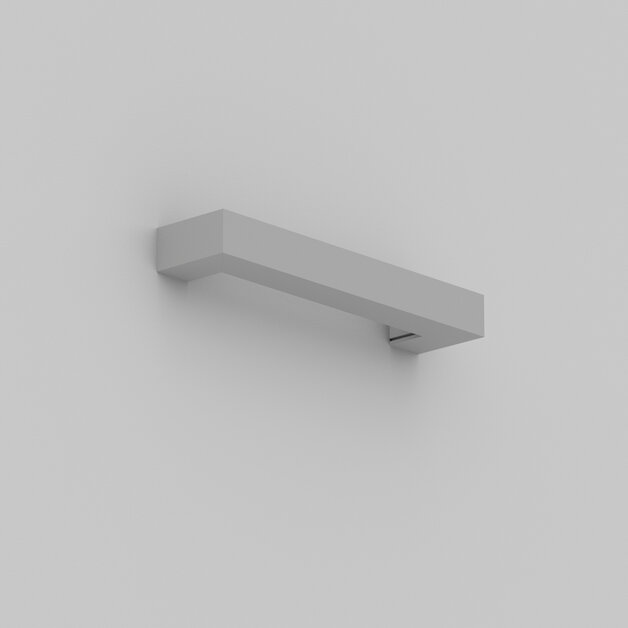

VIP Mini Wall LED 394 9W 470lm 840 OPAL Grey
VIP Mini Wall LED is a miniaturized luminaire designed for wall mounting, complementing VIP series. Made of aluminum profile VIP Mini Wall LED is an additional decorative and accentuating luminaire.Version with LED light sources.
Linear
VIP Mini Wall LED 394 9W 470lm 840 OPAL Grey
VIP Mini Wall LED is a miniaturized luminaire designed for wall mounting, complementing VIP series. Made of aluminum profile VIP Mini Wall LED is an additional decorative and accentuating luminaire.Version with LED light sources.
LED
ON/OFF
DI
IP20
IK04
I
yes
yes
yes
Basic information:
Index:
BQ001.2211.840.A000
EAN:
5907769462894
Accessories:
VIP Mini End cap
Installation:
Wall mounted.
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Linear
Application:
Office, Conference room, Corridor and staircase, Reception, Commercial premises, Lecture hall, Classroom, Computer lab
Mounting type:
Wall mounted
Technical data Download Accessories
Technical data
VIP Mini Wall LED 394 9W 470lm 840 OPAL Grey
PRODUCT CODE
BQ001.2211.840.A000
Copy the code
PRODUCT EAN
5907769462894
Copy the EAN code
Mechanical data
Type of installation Wall mounted
Housing material Aluminum
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
UGR 23
Electrical data
Light source LED
Luminaire power 9 W
Number of light sources 1
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 0.8 kg
Colour Grey
Operating temperature range -15 ... 40
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 470 lm
Luminaire's luminous efficacy 52 lm/W
Light colour White
Color rendering index 80
Light distribution DI
Class of luminaire I
MacAdam SDCM 3
Lifetime L80B10 @25°C 100000 h
Lifetime L90B10 @25°C 64000 h
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 4000K
CRI & colour temperature 840
Certificates
Degree of protection (IP) IP20
Impact resistance IK04
Class of protection I
Light source protection yes
PZH yes
CE yes
HACCP+ yes
Dimensions
L W H
394 mm 92 mm 46 mm
L - Length
W - Width
H - Height / Depth
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
400.37 KB
Download
EC Declaration of conformity
Download
Photometric file
1.24 KB
Download
Pobierz wszystkie pliki
Structural elements
Accessories
VIP Mini End cap
