Luminaires industriels

Hall LED

The luminaire Hall LED was designed for lighting high rooms where possibly the best energy efficiency is the most important matter.

Luminaires industriels

Hall LED

The luminaire Hall LED was designed for lighting high rooms where possibly the best energy efficiency is the most important matter.

Go to the variant list (142)

LED

IP65

Oui

Oui

Oui

Oui

Basic information:

Matériau:

aluminium profile body (standard colours: white, gray, black), optics with three angles of light distribution: 60°, 90°, HR - High Rack, plastic diffuser, cable fitting and 2m long power cord, built-in element for the reduction of condensation by pressure compensation in power distribution systems

Accessories:

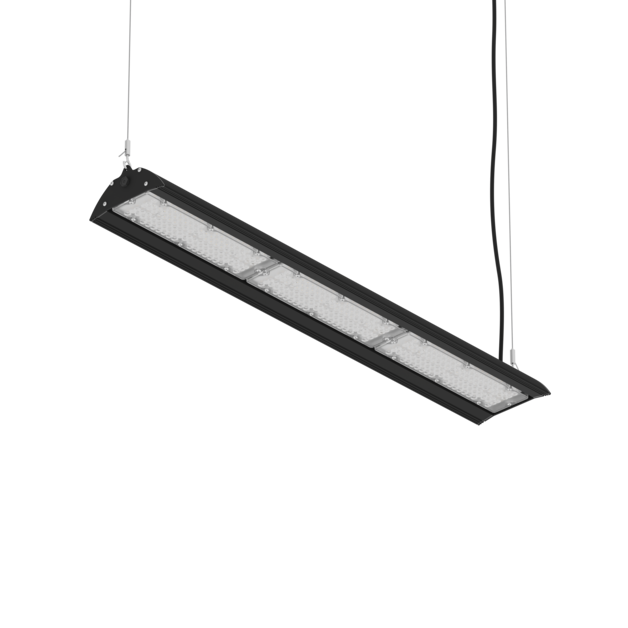

simple suspension, ceiling joint NT 1x and 2x, wall mounting bracket

Montage:

suspended, surface- or wall-mounted

Power:

220 ... 240 V

Categorization:

Selon le type de luminaire:

Luminaires industriels

Selon application:

Laboratoires , Garages, Locaux techniques, Salle de sécurité, Chambres, Salles de personnel/de pause, Installations sportives, Garages et parkings, Laboratoires, Arcades, Stationnement, Parkings et garages, Terrains de sport

Typ de montage:

Au plfond, Suspendu

Technical data:

Luminaire power:

48 - 295 W

Flux lumineux du luminaire:

8445 - 51940 lm

Longueur:

350 mm, 665 mm, 985 mm, 1305 mm

See other technical data

Technical data

Données mécaniques

Type de montage	universel
Matériau du caisson	Aluminium

Données optiques

Raster / diaphragme	LNS
UGR	18, 19, 20, 22, 23, 24, 25, 26

Données électriques

Source lumineuse	LED
Puissance du luminaire	48 - 295 W
Type d'équipement	Alimentation
Tension nominale	220 ... 240 V
Through wiring	Non
Contient une source lumineuse	Oui
Facteur de puissance	0.96
Type of driver	DALI, ON/OFF
Emergency module	opcjonalnie
Capteur de mouvement	opcjonalnie

Information data

Net weight	1.7 - 5.7 kg
Couleur	Noir, blanc, gris
Gamme des températures	-20 ... 45
Power and luminous flux tolerance	+/-10%
Inne	LNS

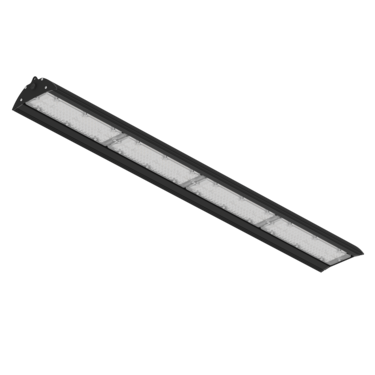

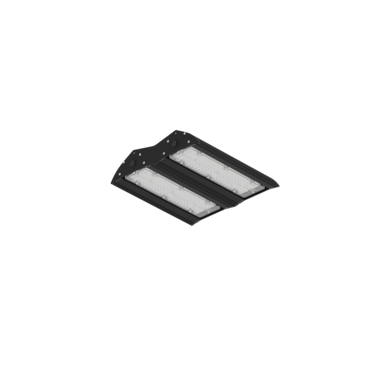

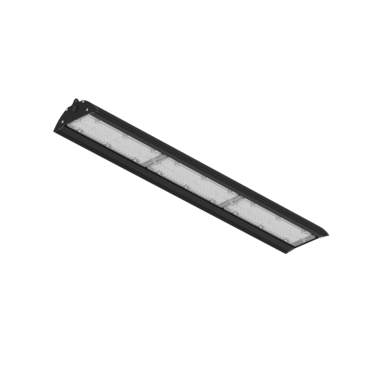

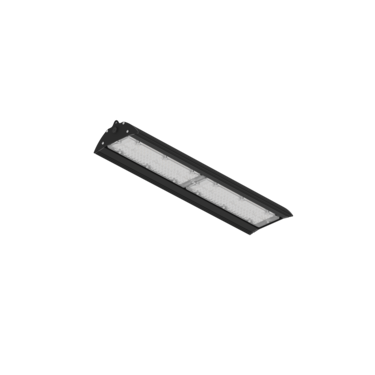

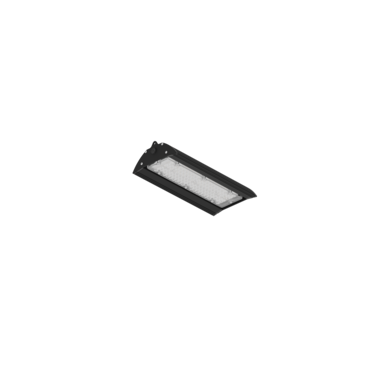

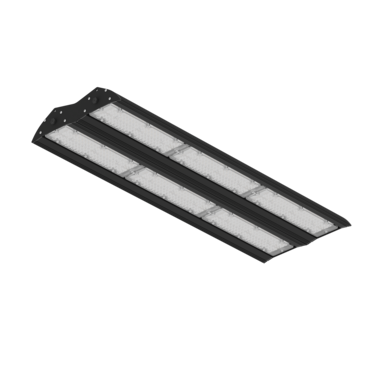

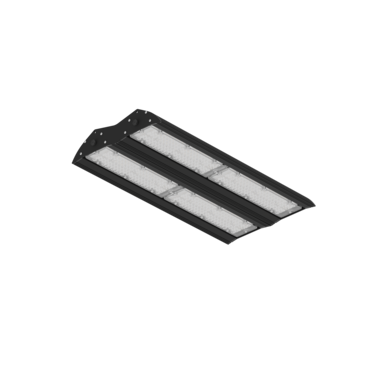

Info	1x 1305, 1x 350, 1x 665, 1x 985, 2x 350, 2x 665, 2x 985

Données lumineuses

Flux lumineux du luminaire	8445 - 51940 lm
Efficacité lumineuse du luminaire	150 - 187 lm/W
Couleur de la lumière	blanc
Indice de rendu des couleurs	80, 90
Distribution lumineuse	DI
Classe de luminaire	I
Angle de distribution	60 °, 90 °
Dégradation des diodes LED	B10
Chute du flux lumineux dans le temps	L80
MacAdam	SDCM 3
Temperature de couleur	3000K, 4000K
Temperatu re de couleur / CRI	830, 840, 940

Certificats et marquages

Niveau de protection (IP)	IP65
Résistance à l'impact	IK08
Classe de protection	I
Protection de la source lumineuse	Oui
Institut national de l'hygiène (Pologne)	Oui
CE	Oui
HACCP+	Oui
EAC	Oui

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Couleur

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Temp. de couleur

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Alimentation

A ON/OFF /WITHOUT REGULATION/

D HO /DRIVER WITH PREDEFINED SETTING/

H DSI

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

X 1-10V /ADJUSTABLE/

S DMX

V sDIMM

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Capteur de mouvement

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Flux lumineux du luminaire	Efficacité lumineuse du luminaire	Optics	Couleur	Type of driver	Type de famille
HH001.1177.840.A000 Copy the code Open in new window	48 W	8445 lm	176 lm/W	HR	blanc	ON/OFF	1X350 HR
HH001.2277.840.A000 Copy the code Open in new window	48 W	8445 lm	176 lm/W	HR	gris	ON/OFF	1X350 HR
HH001.3377.840.A000 Copy the code Open in new window	48 W	8445 lm	176 lm/W	HR	Noir	ON/OFF	1X350 HR
HH002.1177.840.A000 Copy the code Open in new window	48 W	8570 lm	179 lm/W	60°	blanc	ON/OFF	1X350 60°
HH002.2277.840.A000 Copy the code Open in new window	48 W	8570 lm	179 lm/W	60°	gris	ON/OFF	1X350 60°
HH002.3377.840.A000 Copy the code Open in new window	48 W	8570 lm	179 lm/W	60°	Noir	ON/OFF	1X350 60°
HH003.1177.840.A000 Copy the code Open in new window	48 W	8525 lm	178 lm/W	90°	blanc	ON/OFF	1X350 90°
HH003.2277.840.A000 Copy the code Open in new window	48 W	8525 lm	178 lm/W	90°	gris	ON/OFF	1X350 90°
HH003.3377.840.A000 Copy the code Open in new window	48 W	8525 lm	178 lm/W	90°	Noir	ON/OFF	1X350 90°
HH004.1177.840.A000 Copy the code Open in new window	68 W	12550 lm	185 lm/W	HR	blanc	ON/OFF	1X665 HR
HH004.1177.840.D000 Copy the code Open in new window	68 W	12550 lm	185 lm/W	HR	blanc	DALI	1X665 HR
HH004.2277.840.A000 Copy the code Open in new window	68 W	12550 lm	185 lm/W	HR	gris	ON/OFF	1X665 HR
HH004.2277.840.D000 Copy the code Open in new window	68 W	12550 lm	185 lm/W	HR	gris	DALI	1X665 HR
HH004.3377.840.A000 Copy the code Open in new window	68 W	12550 lm	185 lm/W	HR	Noir	ON/OFF	1X665 HR
HH004.3377.840.D000 Copy the code Open in new window	68 W	12550 lm	185 lm/W	HR	Noir	DALI	1X665 HR

Displaying items: 15 of 142

of 10

per page
