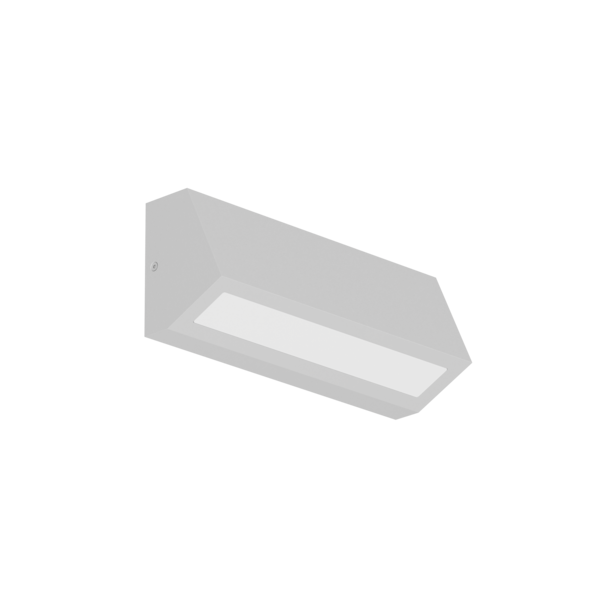

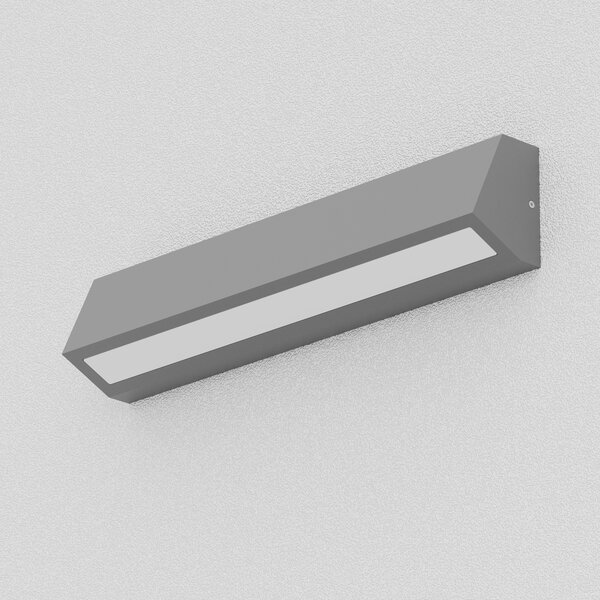

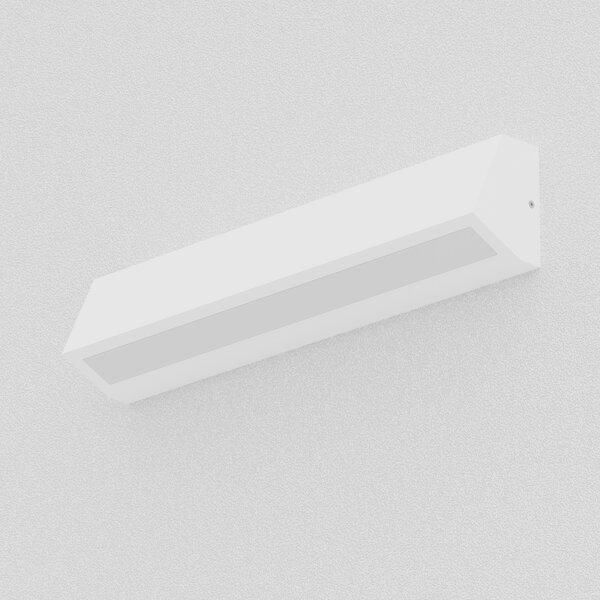

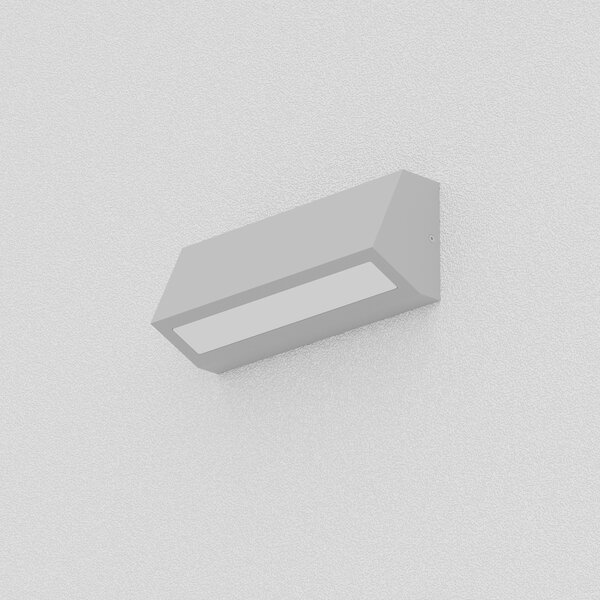

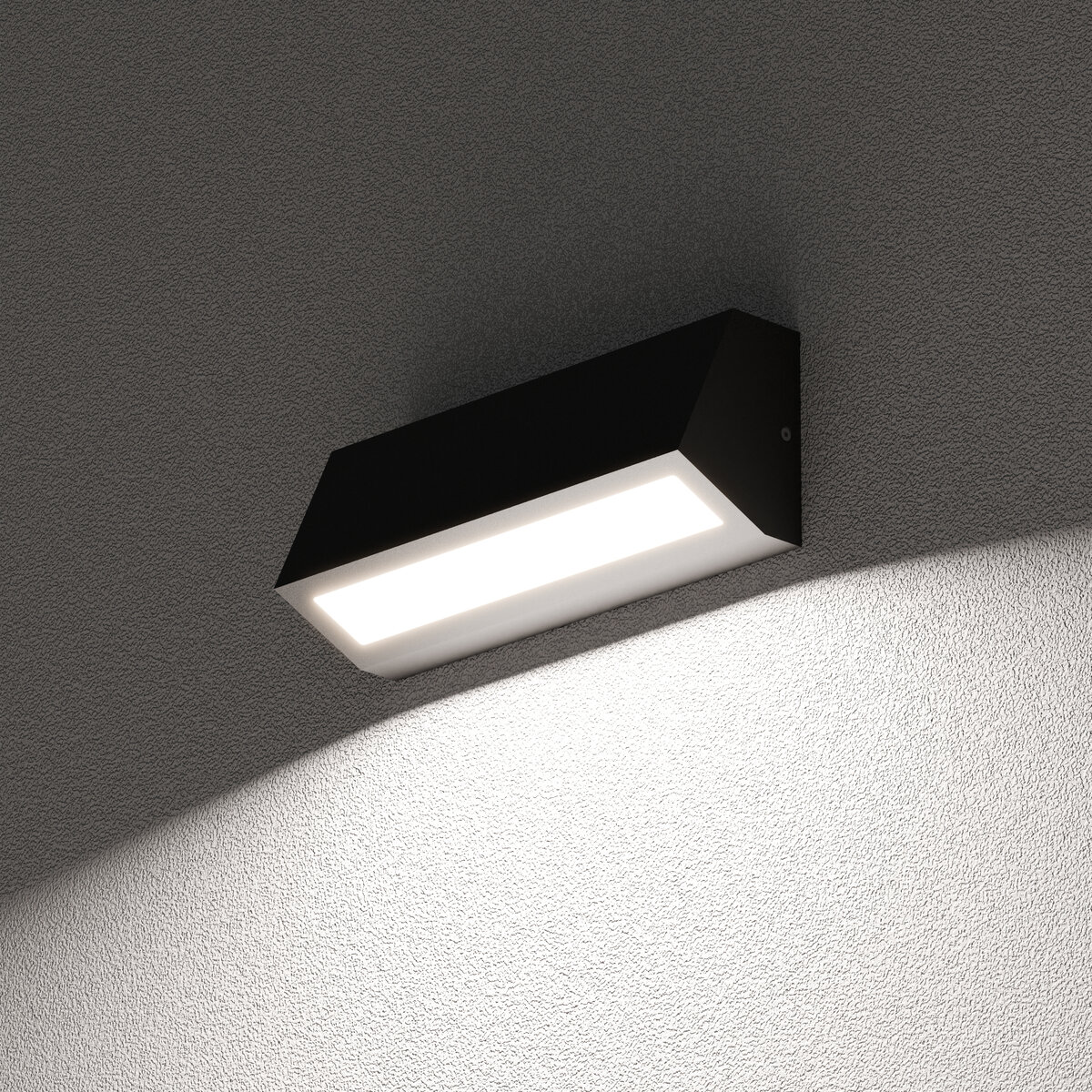

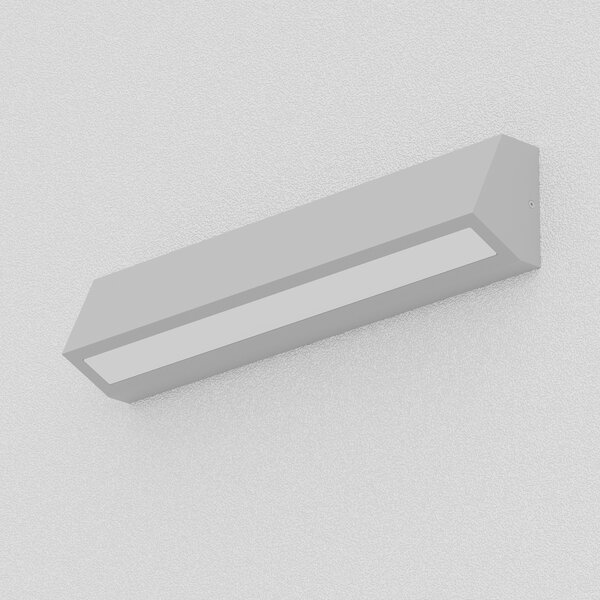

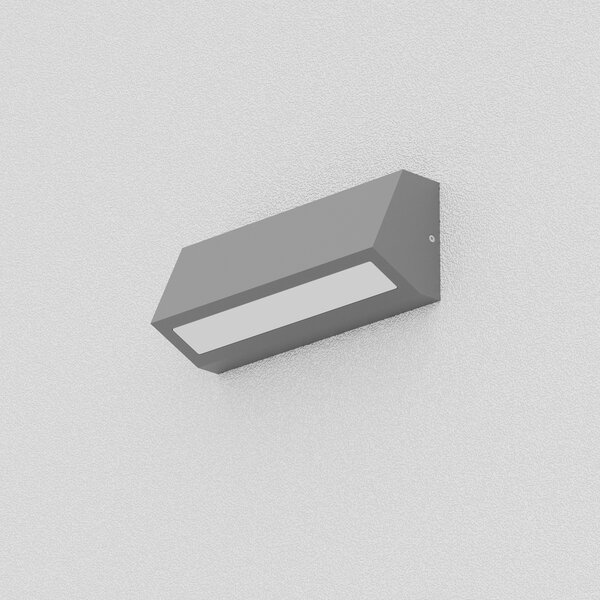

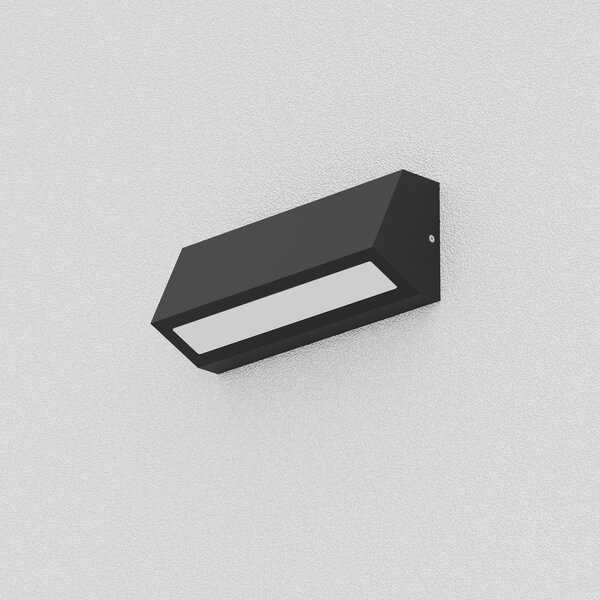

Muri Wall LED

Product variants

How does the product indexing system work?

002

830

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Couleur

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Temp. de couleur

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Alimentation

A ON/OFF /WITHOUT REGULATION/

D HO /DRIVER WITH PREDEFINED SETTING/

H DSI

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

X 1-10V /ADJUSTABLE/

S DMX

V sDIMM

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Capteur de mouvement

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Filtry

Parametry

Anuluj

Show products

Index	Luminaire power	Flux lumineux du luminaire	Efficacité lumineuse du luminaire	Raster / diaphragme [Układ optyczny]	Temperatu re de couleur / CRI	Couleur	Type of driver	Type de famille
HW001.1111.830.A000 Copy the code Open in new window	6 W	750 lm	125 lm/W	OPAL	830	blanc	ON/OFF	330mm 6W
HW001.1111.840.A000 Copy the code Open in new window	6 W	790 lm	132 lm/W	OPAL	840	blanc	ON/OFF	330mm 6W
HW001.3311.830.A000 Copy the code Open in new window	6 W	750 lm	125 lm/W	OPAL	830	Noir	ON/OFF	330mm 6W
HW001.3311.840.A000 Copy the code Open in new window	6 W	790 lm	132 lm/W	OPAL	840	Noir	ON/OFF	330mm 6W
HW001.4411.830.A000 Copy the code Open in new window	6 W	750 lm	125 lm/W	OPAL	830	Anthracite	ON/OFF	330mm 6W
HW001.4411.840.A000 Copy the code Open in new window	6 W	790 lm	132 lm/W	OPAL	840	Anthracite	ON/OFF	330mm 6W
HW002.1111.830.A000 Copy the code Open in new window	13 W	1410 lm	108 lm/W	OPAL	830	blanc	ON/OFF	330mm 13W
HW002.1111.840.A000 Copy the code Open in new window	13 W	1485 lm	114 lm/W	OPAL	840	blanc	ON/OFF	330mm 13W
HW002.3311.830.A000 Copy the code Open in new window	13 W	1410 lm	108 lm/W	OPAL	830	Noir	ON/OFF	330mm 13W
HW002.3311.840.A000 Copy the code Open in new window	13 W	1485 lm	114 lm/W	OPAL	840	Noir	ON/OFF	330mm 13W
HW002.4411.830.A000 Copy the code Open in new window	13 W	1410 lm	108 lm/W	OPAL	830	Anthracite	ON/OFF	330mm 13W
HW002.4411.840.A000 Copy the code Open in new window	13 W	1485 lm	114 lm/W	OPAL	840	Anthracite	ON/OFF	330mm 13W
HW003.1111.830.A000 Copy the code Open in new window	13 W	1495 lm	115 lm/W	OPAL	830	blanc	ON/OFF	610mm 13W
HW003.1111.840.A000 Copy the code Open in new window	13 W	1575 lm	121 lm/W	OPAL	840	blanc	ON/OFF	610mm 13W
HW003.3311.830.A000 Copy the code Open in new window	13 W	1495 lm	115 lm/W	OPAL	830	Noir	ON/OFF	610mm 13W

Index	Moc oprawy	Strumień świetlny oprawy	Długość [L]
HW001.1111.830.A000 Copy the code Open in new window	6 W	750 lm	330 mm
HW001.1111.840.A000 Copy the code Open in new window	6 W	790 lm	330 mm
HW001.3311.830.A000 Copy the code Open in new window	6 W	750 lm	330 mm
HW001.3311.840.A000 Copy the code Open in new window	6 W	790 lm	330 mm
HW001.4411.830.A000 Copy the code Open in new window	6 W	750 lm	330 mm
HW001.4411.840.A000 Copy the code Open in new window	6 W	790 lm	330 mm
HW002.1111.830.A000 Copy the code Open in new window	13 W	1410 lm	330 mm
HW002.1111.840.A000 Copy the code Open in new window	13 W	1485 lm	330 mm
HW002.3311.830.A000 Copy the code Open in new window	13 W	1410 lm	330 mm
HW002.3311.840.A000 Copy the code Open in new window	13 W	1485 lm	330 mm
HW002.4411.830.A000 Copy the code Open in new window	13 W	1410 lm	330 mm
HW002.4411.840.A000 Copy the code Open in new window	13 W	1485 lm	330 mm
HW003.1111.830.A000 Copy the code Open in new window	13 W	1495 lm	610 mm
HW003.1111.840.A000 Copy the code Open in new window	13 W	1575 lm	610 mm
HW003.3311.830.A000 Copy the code Open in new window	13 W	1495 lm	610 mm

Displaying items: 15 of 24

of 2

per page

Source lumineuse	LED
Puissance du luminaire	6 - 25 W
Type d'équipement	Alimentation
Tension nominale	220 ... 240 V
Through wiring	Non
Type of driver	ON/OFF
Emergency module	opcjonalnie
Capteur de mouvement	opcjonalnie

Net weight	1.2 - 2.1 kg
Couleur	Anthracite, Noir, blanc
Gamme des températures	-25 ... 40
Power and luminous flux tolerance	+/-10%

Flux lumineux du luminaire	750 - 2975 lm
Efficacité lumineuse du luminaire	108 - 132 lm/W
Indice de rendu des couleurs	80
Distribution lumineuse	DI
Dégradation des diodes LED	B10
Chute du flux lumineux dans le temps	L80
MacAdam	SDCM 3
Temperature de couleur	3000K, 4000K
Temperatu re de couleur / CRI	830, 840

Niveau de protection (IP)	IP65
Classe de protection	I
Protection de la source lumineuse	Oui
CE	Oui
EAC	Oui

Raster / diaphragme	OPAL
Couleur de la glace/du couvercle	blanc
Matériau de la glace	Matière plastique opalisée/mat
