Via LED

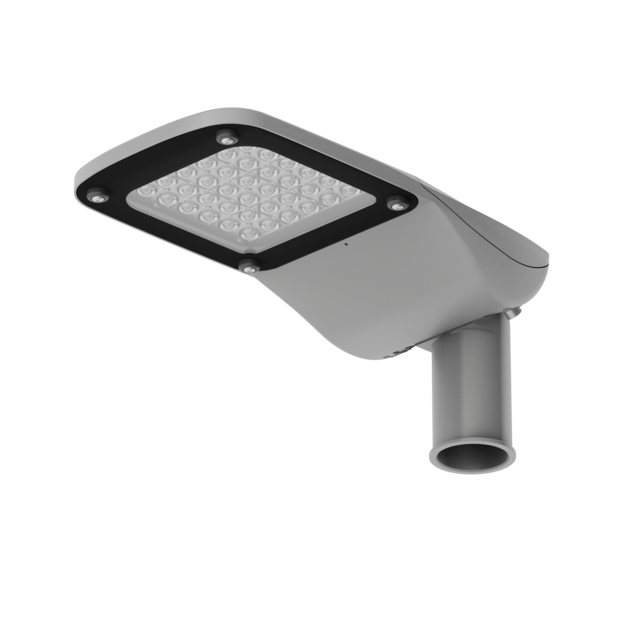

Modern LED luminaire dedicated for street lighting. High luminaire's luminous efficacy and luminous flux. Energy saving LED technology. Optics: AS - asymmetric, ST - street, PC - pedestrian crossings Available on request: DALI, 1-10V, Casambi; knife switch, DW light distribution and other optics; possibility of painting in any color from RAL palette (RAL 7046 in standard); additional overvoltage protection is available up to 10 kV; extended warranty; control: interval TimeDIM, lowered voltage recognition system with flux and power reduction function VoltIN, CLO (Constant Lumen Output) - solutions may involve a change in power consumption and lifespan during long operation

Lampadaires

Via LED

Modern LED luminaire dedicated for street lighting. High luminaire's luminous efficacy and luminous flux. Energy saving LED technology. Optics: AS - asymmetric, ST - street, PC - pedestrian crossings Available on request: DALI, 1-10V, Casambi; knife switch, DW light distribution and other optics; possibility of painting in any color from RAL palette (RAL 7046 in standard); additional overvoltage protection is available up to 10 kV; extended warranty; control: interval TimeDIM, lowered voltage recognition system with flux and power reduction function VoltIN, CLO (Constant Lumen Output) - solutions may involve a change in power consumption and lifespan during long operation

Go to the variant list (67)

LED

IP65

Oui

Oui

Oui

Basic information:

Matériau:

die-cast aluminum body in grey colour, tempered glass, gaskets. Standard drivers with overload, short circuit and overheating protection. Built-in 40cm long power cord 2x 1,5mm

Montage:

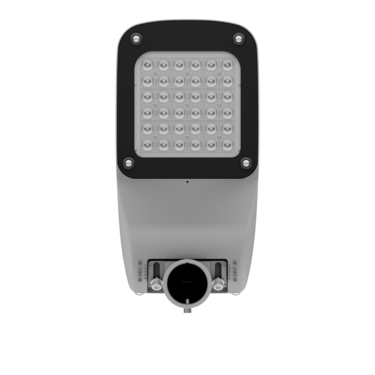

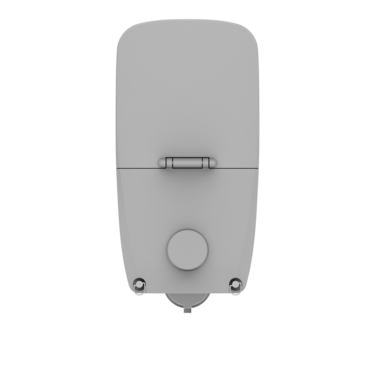

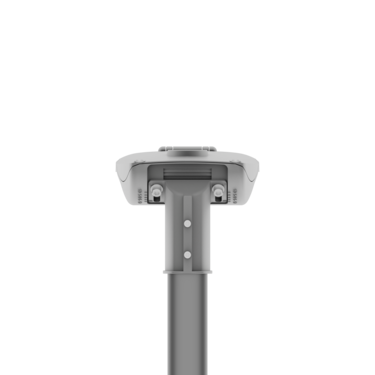

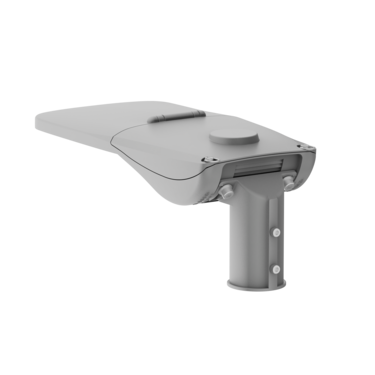

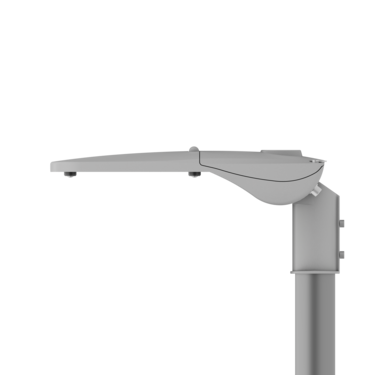

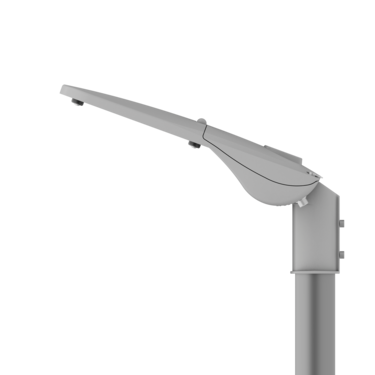

pole mounted, positions of arrangment: horizontal +/-10° (step 5°), vertical 0-20° (step 5°)

Power:

220 ... 240 V

Categorization:

Selon le type de luminaire:

Lampadaires

Selon application:

Abords des bâtiments, Lampadaires, Stationnement, Parcs, Espace extérieur du domaine

Typ de montage:

Sur poteau

Technical data:

Luminaire power:

18 - 98 W

Flux lumineux du luminaire:

2900 - 16300 lm

See other technical data

Description de la famille de produits

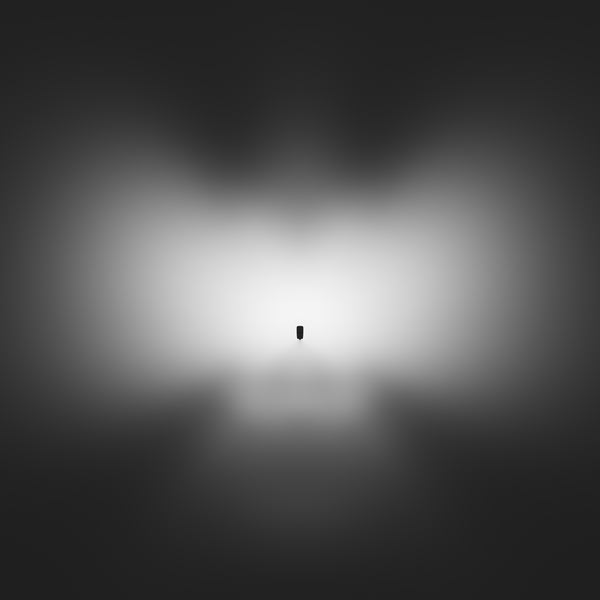

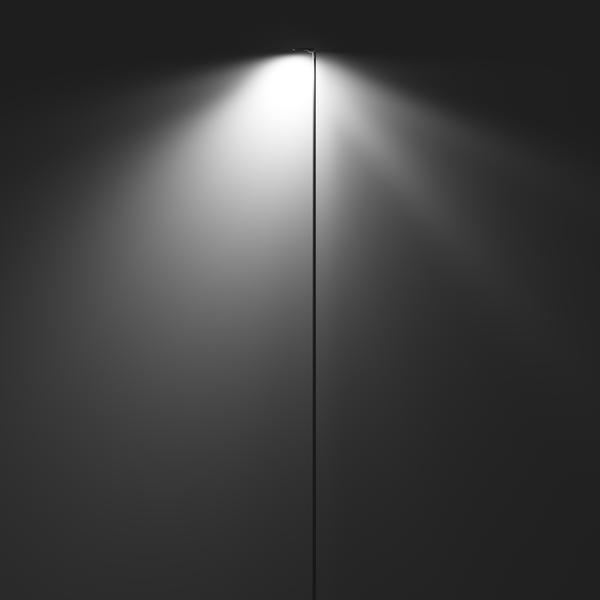

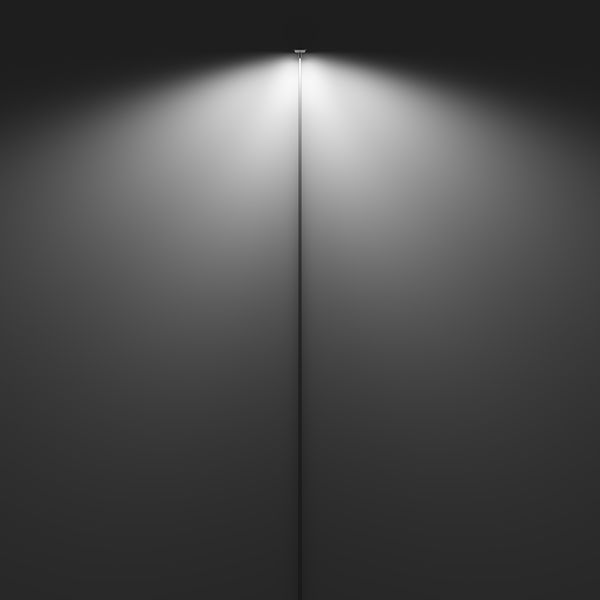

ST - street light distribution

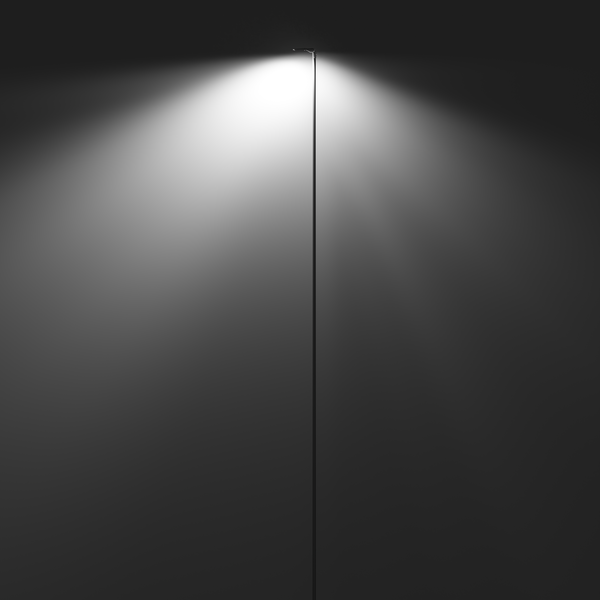

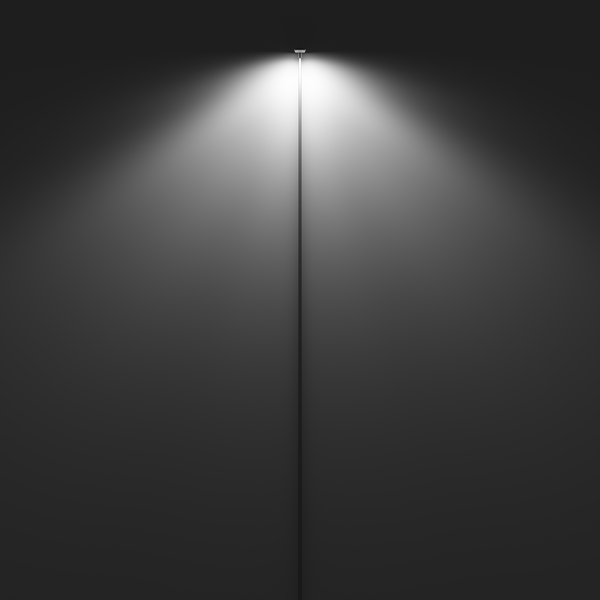

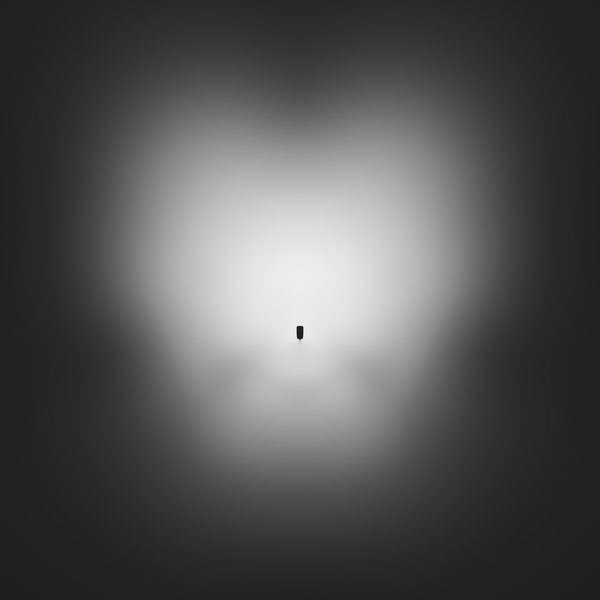

AS - asymmetric light distribution

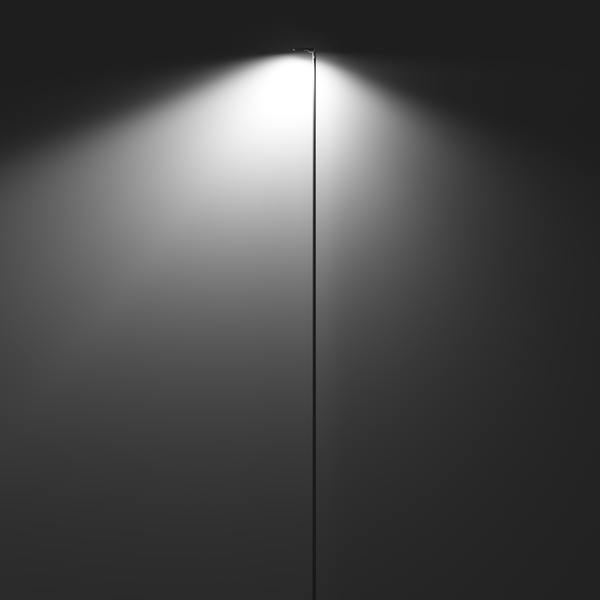

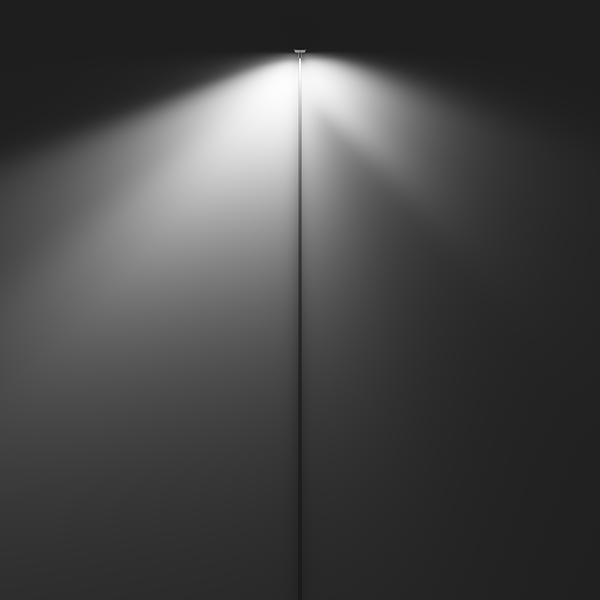

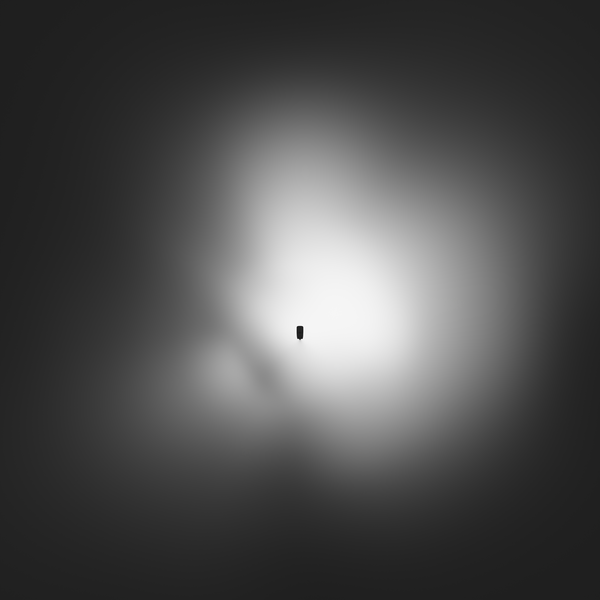

PC - Pedestrian Crossing light distribution

Technical data

Données mécaniques

Type de montage	Do słupa
Matériau du caisson	Aluminium moulé sous pression

Données optiques

Raster / diaphragme

LNS

Données électriques

Source lumineuse	LED
Puissance du luminaire	18 - 98 W
Type d'équipement	Alimentation
Tension nominale	220 ... 240 V
Through wiring	Non
Contient une source lumineuse	Oui
Facteur de puissance	0.96
Type of driver	DALI, ON/OFF
Emergency module	opcjonalnie
Capteur de mouvement	opcjonalnie

Information data

Net weight	4.1 kg
Couleur	Noir, gris
Gamme des températures	-40 ... 45
Power and luminous flux tolerance	+/-10%
Inne	ULOR 0%; DLOR 100%
Info	AS, PC, ST

Données lumineuses

Flux lumineux du luminaire	2900 - 16300 lm
Efficacité lumineuse du luminaire	153 - 182 lm/W
Couleur de la lumière	blanc
Indice de rendu des couleurs	70
Distribution lumineuse	DI
Dégradation des diodes LED	B10
Chute du flux lumineux dans le temps	L90
MacAdam	SDCM 3
Temperature de couleur	3000K, 4000K
Temperatu re de couleur / CRI	730, 740

Certificats et marquages

Niveau de protection (IP)	IP65
Résistance à l'impact	IK08
Classe de protection	I, II
Protection de la source lumineuse	Oui
CE	Oui
HACCP+	Oui
EAC	Oui

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Couleur

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Temp. de couleur

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Alimentation

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Capteur de mouvement

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Flux lumineux du luminaire	Efficacité lumineuse du luminaire	Optics	Raster / diaphragme [Układ optyczny]	Temperatu re de couleur / CRI	Couleur	Type of driver	Classe de protection	Type de famille
HL001.2277.730.A000 Copy the code Open in new window	18 W	2910 lm	162 lm/W	AS	LNS	730	gris	ON/OFF	II	18W AS II Class
HL001.2277.740.A000 Copy the code Open in new window	18 W	3080 lm	171 lm/W	AS	LNS	740	gris	ON/OFF	II	18W AS II Class
HL001.3377.740.A000 Copy the code Open in new window	18 W	3080 lm	171 lm/W	AS	LNS	740	Noir	ON/OFF	II	18W AS II Class
HL002.2277.730.A000 Copy the code Open in new window	18 W	2900 lm	161 lm/W	ST	LNS	730	gris	ON/OFF	II	18W ST II Class
HL002.2277.740.A000 Copy the code Open in new window	18 W	3070 lm	171 lm/W	ST	LNS	740	gris	ON/OFF	II	18W ST II Class
HL002.3377.730.A000 Copy the code Open in new window	18 W	2900 lm	161 lm/W	ST	LNS	730	Noir	ON/OFF	II	18W ST II Class
HL003.2277.730.A000 Copy the code Open in new window	18 W	2990 lm	166 lm/W	PC	LNS	730	gris	ON/OFF	II	18W PC II Class
HL003.2277.740.A000 Copy the code Open in new window	18 W	3160 lm	176 lm/W	PC	LNS	740	gris	ON/OFF	II	18W PC II Class
HL004.2277.730.A000 Copy the code Open in new window	31 W	5200 lm	168 lm/W	AS	LNS	730	gris	ON/OFF	II	31W AS II Class
HL004.2277.740.A000 Copy the code Open in new window	31 W	5500 lm	177 lm/W	AS	LNS	740	gris	ON/OFF	II	31W AS II Class
HL005.2277.730.A000 Copy the code Open in new window	31 W	5180 lm	167 lm/W	ST	LNS	730	gris	ON/OFF	II	31W ST II Class
HL005.2277.740.A000 Copy the code Open in new window	31 W	5485 lm	177 lm/W	ST	LNS	740	gris	ON/OFF	II	31W ST II Class
HL005.3377.740.A000 Copy the code Open in new window	31 W	5485 lm	177 lm/W	ST	LNS	740	Noir	ON/OFF	II	31W ST II Class
HL006.2277.730.A000 Copy the code Open in new window	31 W	5340 lm	172 lm/W	PC	LNS	730	gris	ON/OFF	II	31W PC II Class
HL006.2277.740.A000 Copy the code Open in new window	31 W	5645 lm	182 lm/W	PC	LNS	740	gris	ON/OFF	II	31W PC II Class
