Architekturbeleuchtung

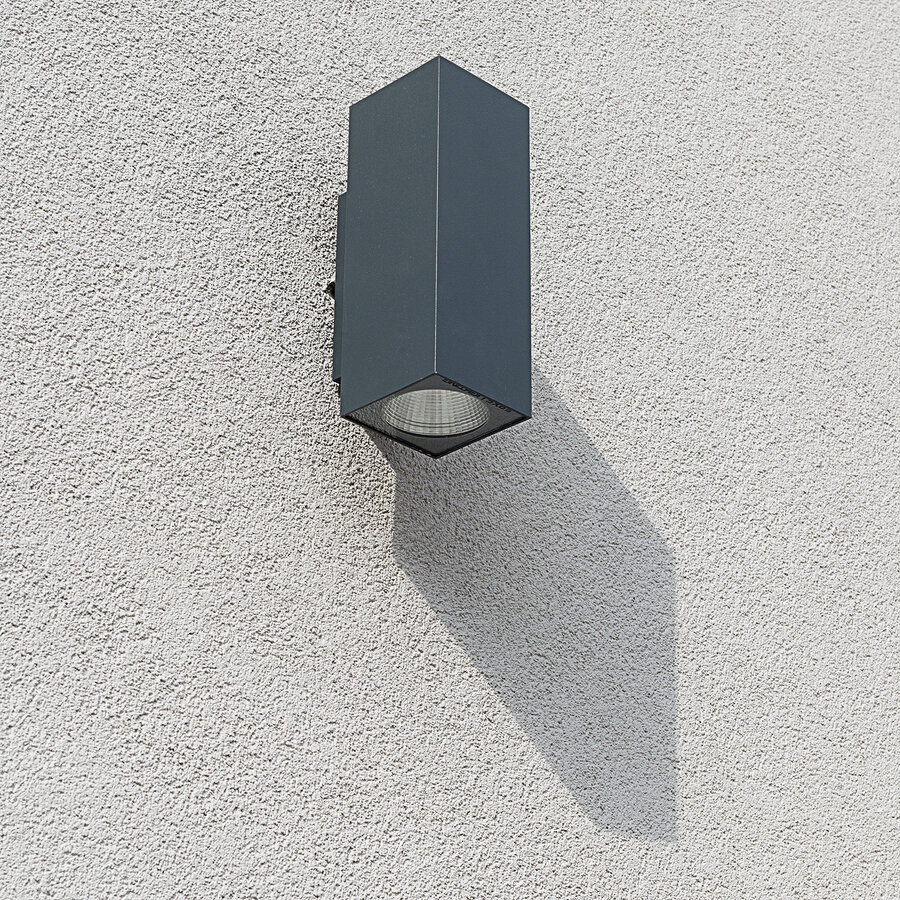

Cubic Wall IP65 LED

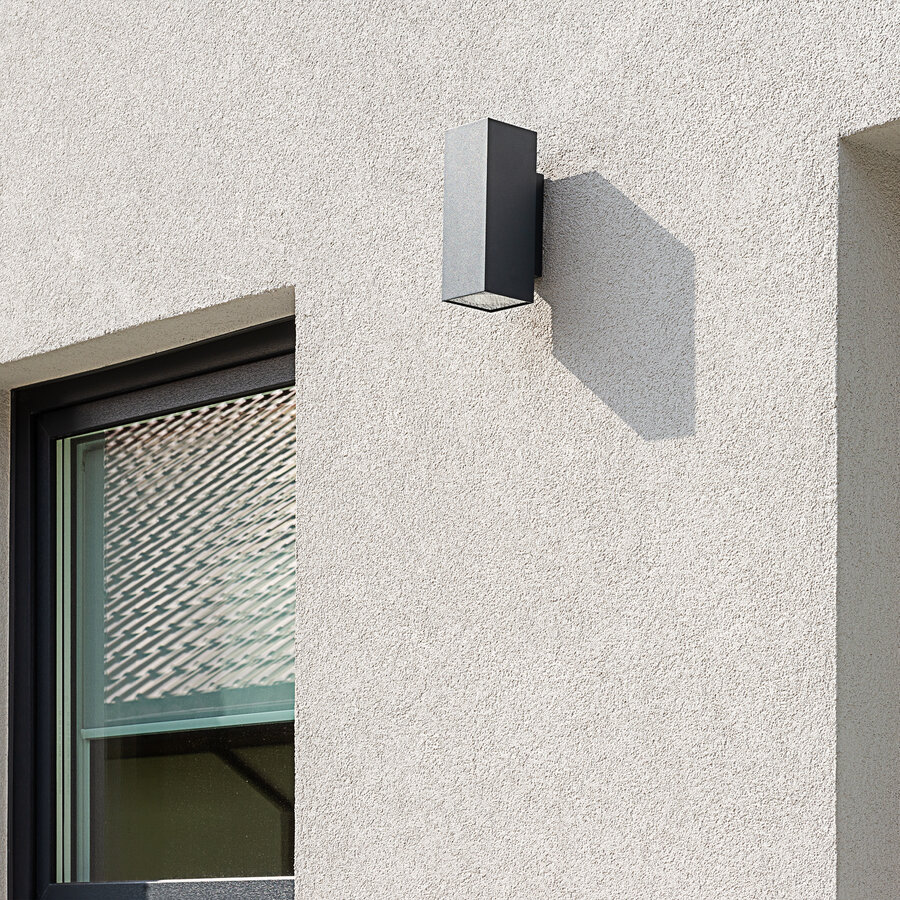

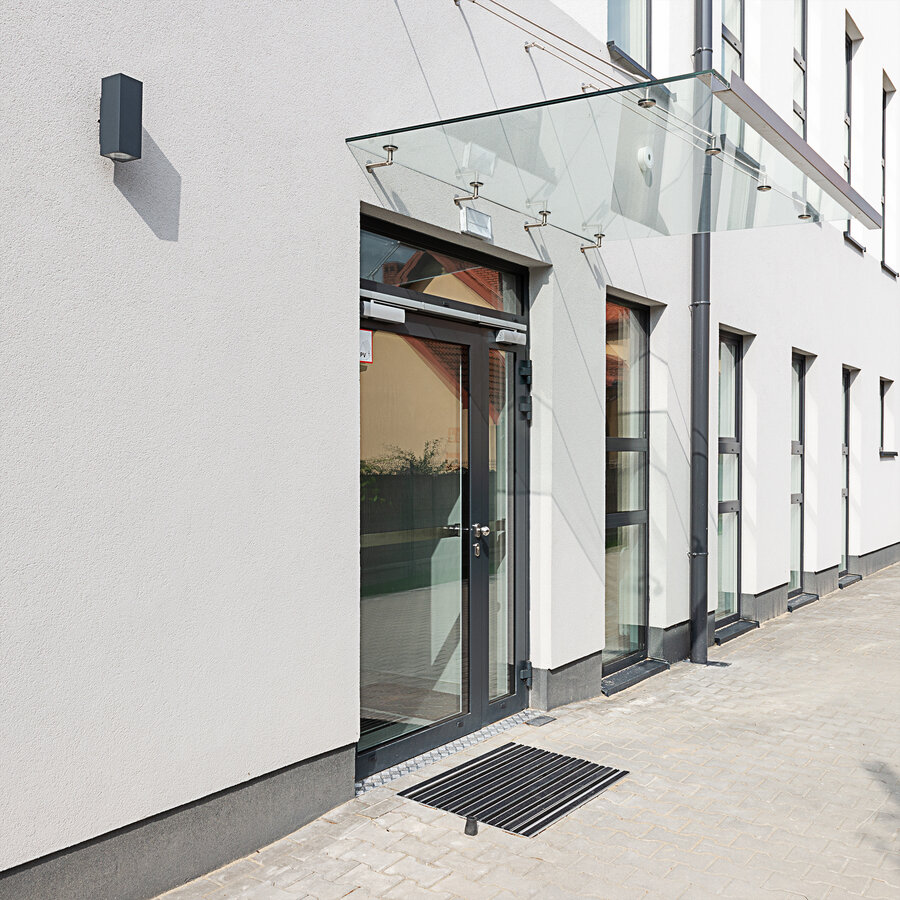

LED bracket with subtle design for illumination of covered facades and representative rooms. Possibility of painting in any RAL colour.

Architekturbeleuchtung

Cubic Wall IP65 LED

LED bracket with subtle design for illumination of covered facades and representative rooms. Possibility of painting in any RAL colour.

Go to the variant list (21)

LED

Lichtaustritt DI

IP65

Basic information:

Ausführung:

Electrostatically painted aluminium profile (standard colour: anthracite), diffuser made of transparent tempered glass

Montageart:

Wall mounted

Power:

220 ... 240 V

Categorization:

Leuchtentyp:

Architekturbeleuchtung

Anwendung:

Äußenbereich eines Wohngebiets, Gebäudeumgebung , Schattenspender, Gebäudeillumination

Montagetyp:

Wandleuchten

Technical data:

Luminaire power:

10 - 26 W

Leuchtenlichtstrom:

1100 - 2940 lm

Länge:

232 mm

See other technical data

Technical data

Mechanische Produktdaten

Montagearten	Naścienny
Gehäuse-Material	Aluminium

Optische Produktdaten

Raster/ Blendschutz	RF
Spiegelraster	high gloss
UGR	20, 21, 23

Elektrische Produktdaten

Leuchtmittel	LED
Leuchtenanschlussleistung	10 - 26 W
Lieferbares Zubehör	Netzteil
Nennspannung	220 ... 240 V
Through wiring	Nein
mit Leuchtmittel bestückt	Ja
Type of driver	DALI, ON/OFF
Emergency module	opcjonalnie
Bewegungssensor	opcjonalnie

Information data

Net weight	1.4 kg
Farbe	Anthracite, grau, schwarz, weiß
Betriebstemperaturumfang	-20 ... 40
Power and luminous flux tolerance	+/-10%

Lichttechnische Daten

Leuchtenlichtstrom	1100 - 2940 lm
Lichtausbeute der Leuchte	105 - 122 lm/W
Lichtausbeute der Leuchte	73
Lichtfarbe	weiss
Farbwiedergabeindex	80
Lichtverteilung	Średniostrumieniowy
Lichtverteilung	Lichtaustritt DI
Schutzklasse der Leuchte	I
Abstrahlwinkel / Ausstrahlungswinkel	50 °
Light output degradation	B10
Lumen maintenance	L90
Lifetime	60000 h
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	91 %
Farbtemperatur	3000K, 4000K
Farbtemperatur / CRI	830, 840

Zertifikate

Schutzart IP	IP65
Schlagfestigkeit	IK06
Schutzklasse	I
Lampenschutz	Ja
CE	Ja
HACCP+	Ja
EAC	Ja

Product variants

✕

Suche

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Farbe

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI /Farbtemperatur

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Netzteil

A ON/OFF /WITHOUT REGULATION/

D HO /DRIVER WITH PREDEFINED SETTING/

H DSI

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

X 1-10V /ADJUSTABLE/

S DMX

V sDIMM

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Bewegungssensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Leuchtenlichtstrom	Lichtausbeute der Leuchte	Raster/ Blendschutz [Układ optyczny]	Farbtemperatur / CRI	Lichtverteilung	Abstrahlwinkel / Ausstrahlungswinkel	Farbe	Type of driver	Familientyp
EI001.1166.830.A000 Copy the code Open in new window	10 W	1220 lm	122 lm/W	RF	830	Lichtaustritt DI		weiß	ON/OFF	10W 15°
EI001.1166.840.A000 Copy the code Open in new window	10 W	1130 lm	113 lm/W	RF	840	Lichtaustritt DI	50°	weiß	ON/OFF	10W 50°
EI001.1166.840.D000 Copy the code Open in new window	10 W	1130 lm	113 lm/W	RF	840	Lichtaustritt DI	50°	weiß	DALI	10W 50°
EI001.3366.830.A000 Copy the code Open in new window	10 W	1220 lm	122 lm/W	RF	830	Lichtaustritt DI		schwarz	ON/OFF	10W 15°
EI001.3366.840.A000 Copy the code Open in new window	10 W	1130 lm	113 lm/W	RF	840	Lichtaustritt DI	50°	schwarz	ON/OFF	10W 50°
EI001.4466.830.A000 Copy the code Open in new window	10 W	1100 lm	110 lm/W	RF	830	Lichtaustritt DI	50°	Anthracite	ON/OFF	10W 50°
EI001.4466.830.D000 Copy the code Open in new window	10 W	1100 lm	110 lm/W	RF	830	Lichtaustritt DI	50°	Anthracite	DALI	10W 50°
EI001.4466.840.A000 Copy the code Open in new window	10 W	1130 lm	113 lm/W	RF	840	Lichtaustritt DI	50°	Anthracite	ON/OFF	10W 50°
EI001.4466.840.D000 Copy the code Open in new window	10 W	1130 lm	113 lm/W	RF	840	Lichtaustritt DI	50°	Anthracite	DALI	10W 50°
EI002.1166.840.A000 Copy the code Open in new window	15 W	1630 lm	109 lm/W	RF	840	Lichtaustritt DI	50°	weiß	ON/OFF	15W 50°
EI002.3366.840.A000 Copy the code Open in new window	15 W	1630 lm	109 lm/W	RF	840	Lichtaustritt DI	50°	schwarz	ON/OFF	15W 50°
EI002.4466.830.A000 Copy the code Open in new window	15 W	1580 lm	105 lm/W	RF	830	Lichtaustritt DI	50°	Anthracite	ON/OFF	15W 50°
EI002.4466.830.D000 Copy the code Open in new window	15 W	1580 lm	105 lm/W	RF	830	Lichtaustritt DI	50°	Anthracite	DALI	15W 50°
EI002.4466.840.A000 Copy the code Open in new window	15 W	1630 lm	109 lm/W	RF	840	Lichtaustritt DI	50°	Anthracite	ON/OFF	15W 50°
EI002.4466.840.D000 Copy the code Open in new window	15 W	1630 lm	109 lm/W	RF	840	Lichtaustritt DI	50°	Anthracite	DALI	15W 50°
