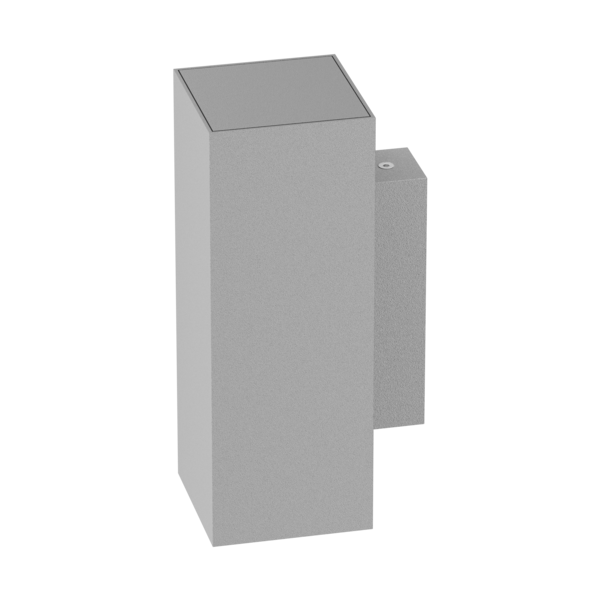

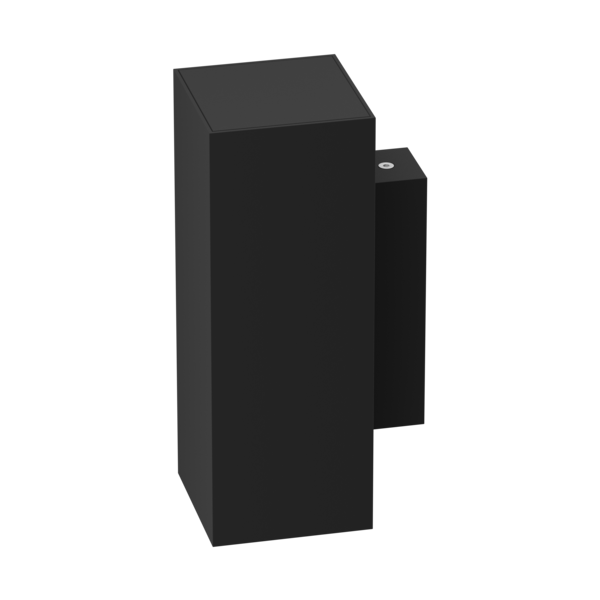

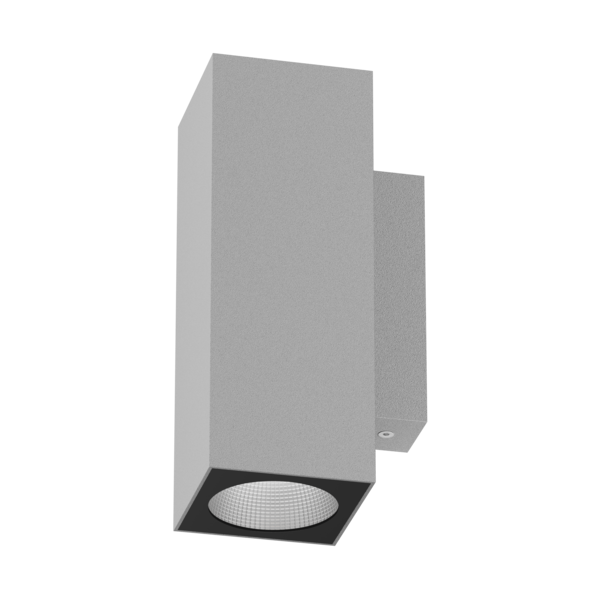

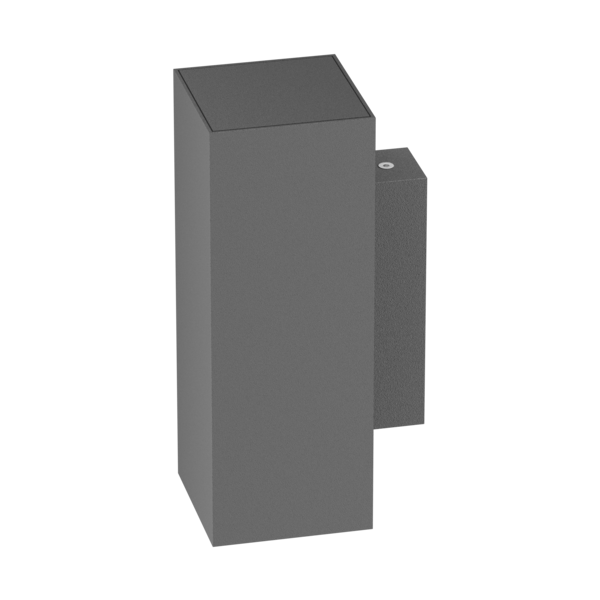

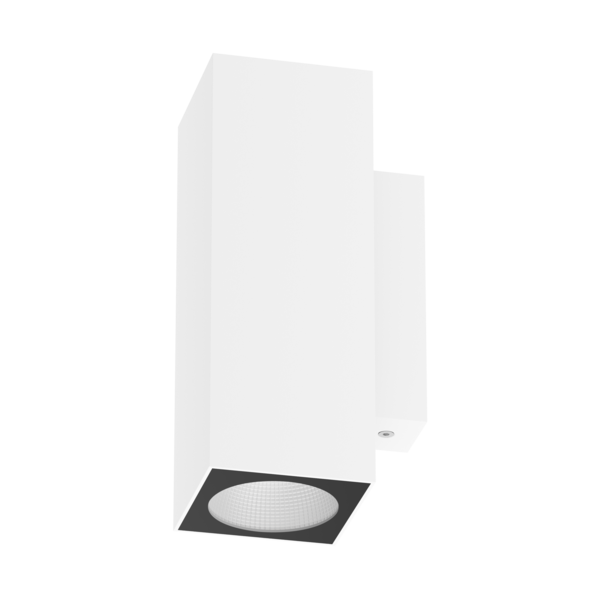

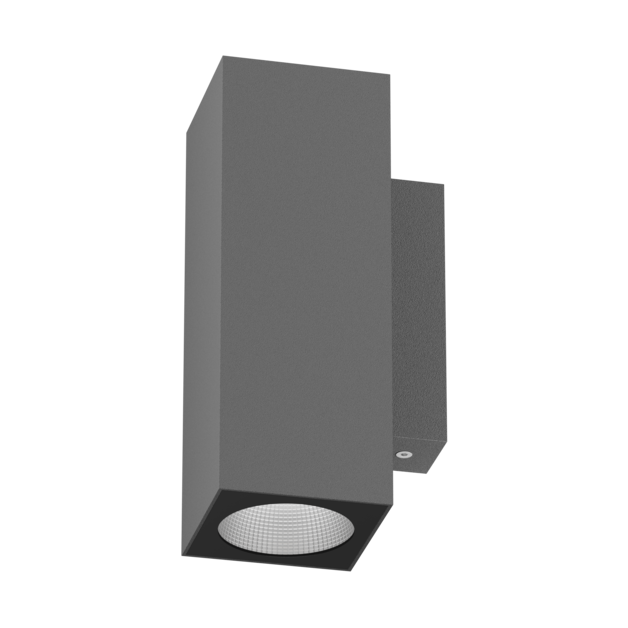

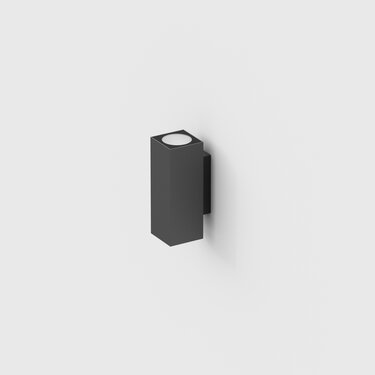

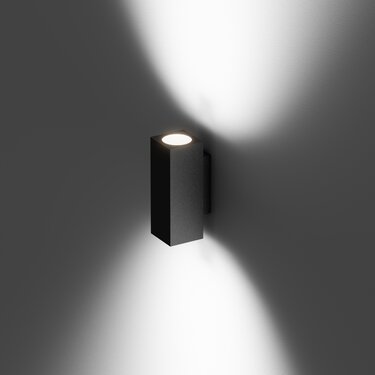

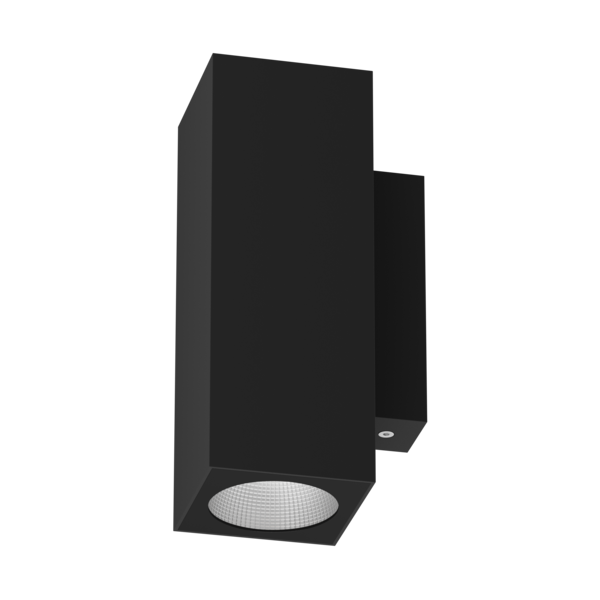

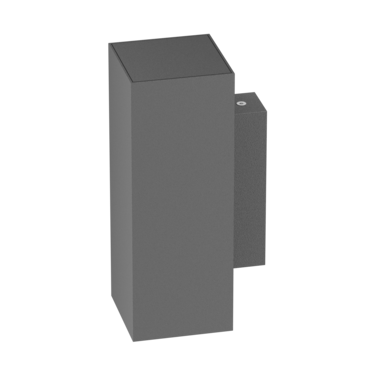

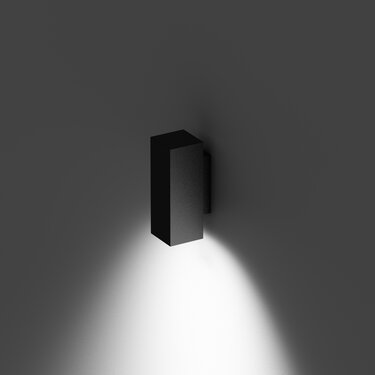

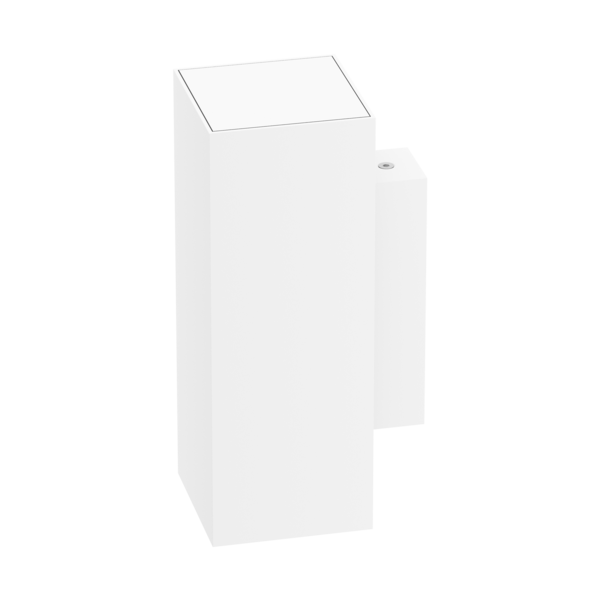

Cubic Wall IP65 LED

LED bracket with subtle design for illumination of covered facades and representative rooms. Possibility of painting in any RAL colour.

Architectural

Cubic Wall IP65 LED

LED bracket with subtle design for illumination of covered facades and representative rooms. Possibility of painting in any RAL colour.

Go to the variant list (21)

LED

IP65

IK06

yes

yes

yes

Basic information:

Materials:

Electrostatically painted aluminium profile (standard colour: anthracite), diffuser made of transparent tempered glass

Installation:

Wall mounted

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Architectural

Application:

Apartment building environment, Building environment, Arcade, Facade

Mounting type:

Wall mounted

Technical data:

Luminaire power:

10 - 26 W

Luminaire luminous flux:

1100 - 2940 lm

Length:

232 mm

See other technical data

Description of the product's family

Technical data

Mechanical data

Type of installation	Wall mounted
Housing material	Aluminum

Optical data

Louver/ diffuser	RF
Reflector	high gloss
UGR	20, 21, 23

Electrical data

Light source	LED
Luminaire power	10 - 26 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Light source included	yes
Type of driver	DALI, ON/OFF
Emergency module	option
Motion sensor	option

Information data

Net weight	1.4 kg
Colour	Anthracite, Black, Grey, White
Operating temperature range	-20 ... 40
Power and luminous flux tolerance	+/-10%

Light data

Luminaire luminous flux	1100 - 2940 lm
Luminaire's luminous efficacy	105 - 122 lm/W
Luminaire's luminous efficiency	73
Light colour	White
Color rendering index	80
Light distribution	Medium-stream
Light distribution	DI
Class of luminaire	I
Beam angle	50 °
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	91 %
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840

Certificates

Degree of protection (IP)	IP65
Impact resistance	IK06
Class of protection	I
Light source protection	yes
CE	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

Filtry

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Układ optyczny]	CRI & colour temperature	Light distribution	Beam angle	Colour	Type of driver	Type of family
EI001.1166.830.A000 Copy the code Open in new window	10 W	1220 lm	122 lm/W	RF	830	DI		White	ON/OFF	10W 15°
EI001.1166.840.A000 Copy the code Open in new window	10 W	1130 lm	113 lm/W	RF	840	DI	50°	White	ON/OFF	10W 50°
EI001.1166.840.D000 Copy the code Open in new window	10 W	1130 lm	113 lm/W	RF	840	DI	50°	White	DALI	10W 50°
EI001.3366.830.A000 Copy the code Open in new window	10 W	1220 lm	122 lm/W	RF	830	DI		Black	ON/OFF	10W 15°
EI001.3366.840.A000 Copy the code Open in new window	10 W	1130 lm	113 lm/W	RF	840	DI	50°	Black	ON/OFF	10W 50°
EI001.4466.830.A000 Copy the code Open in new window	10 W	1100 lm	110 lm/W	RF	830	DI	50°	Anthracite	ON/OFF	10W 50°
EI001.4466.830.D000 Copy the code Open in new window	10 W	1100 lm	110 lm/W	RF	830	DI	50°	Anthracite	DALI	10W 50°
EI001.4466.840.A000 Copy the code Open in new window	10 W	1130 lm	113 lm/W	RF	840	DI	50°	Anthracite	ON/OFF	10W 50°
EI001.4466.840.D000 Copy the code Open in new window	10 W	1130 lm	113 lm/W	RF	840	DI	50°	Anthracite	DALI	10W 50°
EI002.1166.840.A000 Copy the code Open in new window	15 W	1630 lm	109 lm/W	RF	840	DI	50°	White	ON/OFF	15W 50°
EI002.3366.840.A000 Copy the code Open in new window	15 W	1630 lm	109 lm/W	RF	840	DI	50°	Black	ON/OFF	15W 50°
EI002.4466.830.A000 Copy the code Open in new window	15 W	1580 lm	105 lm/W	RF	830	DI	50°	Anthracite	ON/OFF	15W 50°
EI002.4466.830.D000 Copy the code Open in new window	15 W	1580 lm	105 lm/W	RF	830	DI	50°	Anthracite	DALI	15W 50°
EI002.4466.840.A000 Copy the code Open in new window	15 W	1630 lm	109 lm/W	RF	840	DI	50°	Anthracite	ON/OFF	15W 50°
EI002.4466.840.D000 Copy the code Open in new window	15 W	1630 lm	109 lm/W	RF	840	DI	50°	Anthracite	DALI	15W 50°

Displaying items: 15 of 21

of 2

per page

Family datasheet
