LED bracket with subtle design for illumination of covered facades and representative rooms. Possibility of painting in any RAL colour.
LED bracket with subtle design for illumination of covered facades and representative rooms. Possibility of painting in any RAL colour.
| Type of installation | Naścienny |
| Housing material | Aluminum |
| Louver/ diffuser | RF |
| Reflector | high gloss |
| UGR | 21 |
| Light source | LED |
| Luminaire power | 15 W |
| Number of light sources | 2 |
| Type of equipment | AC |
| Voltage rating | 220 ... 240 V |
| Through wiring | No |
| Light source included | yes |
| Type of driver | DALI |
| Emergency module | No |
| Motion sensor | No |
| Net weight | 1.4 kg |
| Colour | Anthracite |
| Power and luminous flux tolerance | +/-10% |
| Luminaire luminous flux | 1580 lm |
| Luminaire's luminous efficacy | 105 lm/W |
| Luminaire's luminous efficiency | 73 |
| Light colour | White |
| Color rendering index | 80 |

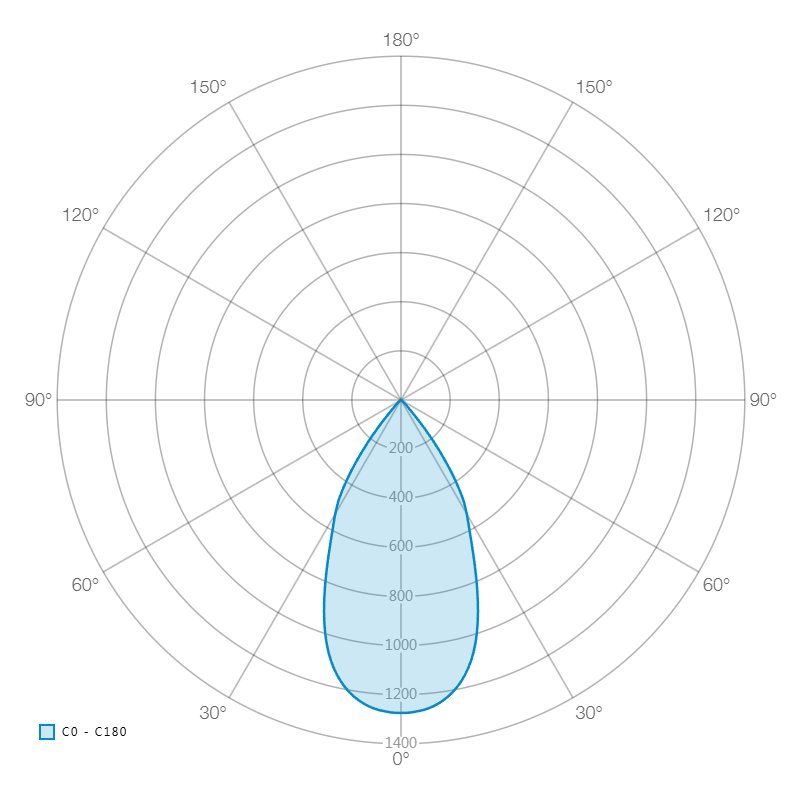

| Light distribution | DI |
| Class of luminaire | I |
| Beam angle | 50° |
| Light output degradation | B10 |
| Lumen maintenance | L90 |
| MacAdam | SDCM 3 |
| Lamp Lumen Maintenance Factor (after 60 000h) | 91 % |
| Colour temperature | 3000K |
| CRI & colour temperature | 830 |
| Degree of protection (IP) | IP65 |
| Impact resistance | IK06 |
| Class of protection | I |
| Light source protection | yes |
| CE | yes |
| HACCP+ | yes |
| EAC | yes |
| L | W | H |
|---|---|---|
| 232 mm | 85 mm | 232 mm |
