Flash New LED

Hallenleuchten

Flash New LED

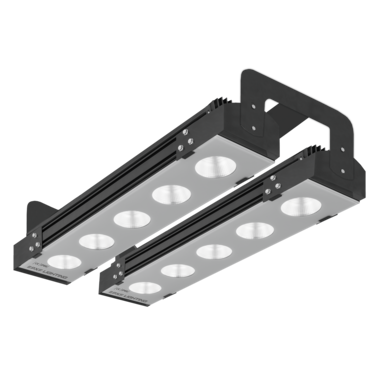

The luminaire FLASH NEW LED was designed for lighting high rooms where possibly the best energy efficiency is the most important matter. For a separate module, installation parts have to be additionally ordered. For example: • ceiling-mounted or suspended version: one 128 W module and, additionally, one 1x bracket, two 128 W modules and one 2x bracket, • suspended version: additionally suspension, • recessed version: 128 W module and, additionally, one 1x bracket, suspension and masking frame for plaster-cardboard (G/K) ceilings, • wall-mounted version: 128 W module and, additionally, 1x adjustable wall bracket.

Hallenleuchten

Flash New LED

Go to the variant list (41)

Basic information:

Ausführung:

aluminium profile body (standard colour: black), tempered glass painted grey, COB LEDs, aluminium reflectors available with three angles of light distribution, powder painted 1x or 2x steel bracket (standard colour: black), aluminium frame for plaster cardboard ceilings – G/K (standard colour: black).

Zubehör:

masking frame for plaster-card-board ceilings, 1x or 2x bracket (for surface-mounted or suspended version), wall bracket (for wall version), suspension

Montageart:

surface- or wall-mounted, suspended, recessed

Power:

220 ... 240 V

Categorization:

Leuchtentyp:

Hallenleuchten

Anwendung:

Labore , Garagen, Technikräume, Wachräume, soziale Räume, Sportanlagen - Sporthallen, Parkplätze und Garagen, Schattenspender, Parkplätze , Sportbereiche

Montagetyp:

Hängeleuchten

Technical data:

Luminaire power:

78 - 193 W

Leuchtenlichtstrom:

9290 - 27470 lm

Länge:

390 mm, 500 mm, 610 mm, 720 mm, 830 mm

See other technical data

Montagearten	Universal
Gehäuse-Material	Aluminium

Raster/ Blendschutz	RF
Spiegelraster	high gloss
UGR	21, 22, 27

Leuchtmittel	LED
Leuchtenanschlussleistung	78 - 193 W
Lieferbares Zubehör	Netzteil
Nennspannung	220 ... 240 V
Through wiring	Nein
mit Leuchtmittel bestückt	Ja
Power factor	0.96
Type of driver	DALI, ON/OFF
Emergency module	option
Bewegungssensor	option

Net weight	3.5 - 7.4 kg
Farbe	schwarz, weiß
Betriebstemperaturumfang	-25 ... 40
Power and luminous flux tolerance	+/-10%

Leuchtenlichtstrom	9290 - 27470 lm
Lichtausbeute der Leuchte	119 - 142 lm/W
Lichtfarbe	weiss
Farbwiedergabeindex	80, 90
Lichtverteilung	Bardzo wąskostrumieniowy, breitstrahlend, Średniostrumieniowy
Lichtverteilung	Lichtaustritt DI
Schutzklasse der Leuchte	I
Abstrahlwinkel / Ausstrahlungswinkel	30 °, 50 °, 70 °
Light output degradation	B10
Lumen maintenance	L90
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	90 %
Farbtemperatur	3000K, 4000K
Farbtemperatur / CRI	830, 840, 940

Schutzart IP	IP66
Schlagfestigkeit	IK10
Schutzklasse	I
Lampenschutz	Ja
PZH	Ja
CE	Ja
HACCP+	Ja
EAC	Ja

Index	Luminaire power	Leuchtenlichtstrom	Lichtausbeute der Leuchte	Abstrahlwinkel / Ausstrahlungswinkel	Raster/ Blendschutz [Układ optyczny]	Farbtemperatur / CRI	Farbe	Type of driver	Familientyp
AD001.3366.840.A000 Copy the code Open in new window	128 W	17790 lm	139 lm/W	30°	RF	840	schwarz	ON/OFF	5x 30°
AD001.3366.840.D000 Copy the code Open in new window	128 W	17790 lm	139 lm/W	30°	RF	840	schwarz	DALI	5x 30°
AD002.3366.840.A000 Copy the code Open in new window	128 W	17900 lm	140 lm/W	50°	RF	840	schwarz	ON/OFF	5x 50°
AD002.3366.840.D000 Copy the code Open in new window	128 W	17900 lm	140 lm/W	50°	RF	840	schwarz	DALI	5x 50°
AD003.3366.840.A000 Copy the code Open in new window	128 W	18200 lm	142 lm/W	70°	RF	840	schwarz	ON/OFF	5x 70°
AD003.3366.840.D000 Copy the code Open in new window	128 W	18200 lm	142 lm/W	70°	RF	840	schwarz	DALI	5x 70°
AD004.3366.840.A000 Copy the code Open in new window	166 W	23010 lm	139 lm/W	30°	RF	840	schwarz	ON/OFF	6x 30°
AD004.3366.840.D000 Copy the code Open in new window	166 W	23010 lm	139 lm/W	30°	RF	840	schwarz	DALI	6x 30°
AD005.3366.840.A000 Copy the code Open in new window	166 W	23160 lm	140 lm/W	50°	RF	840	schwarz	ON/OFF	6x 50°
AD005.3366.840.A200 Copy the code Open in new window	166 W	23160 lm	140 lm/W	50°	RF	840	schwarz	ON/OFF	6x 50°
AD005.3366.840.D000 Copy the code Open in new window	166 W	23160 lm	140 lm/W	50°	RF	840	schwarz	DALI	6x 50°
AD006.3366.840.A000 Copy the code Open in new window	166 W	23550 lm	142 lm/W	70°	RF	840	schwarz	ON/OFF	6x 70°
AD006.3366.840.D000 Copy the code Open in new window	166 W	23550 lm	142 lm/W	70°	RF	840	schwarz	DALI	6x 70°
AD007.3366.840.A000 Copy the code Open in new window	78 W	10670 lm	137 lm/W	30°	RF	840	schwarz	ON/OFF	3x 30°
AD007.3366.840.D000 Copy the code Open in new window	78 W	10670 lm	137 lm/W	30°	RF	840	schwarz	DALI	3x 30°
