Industrial

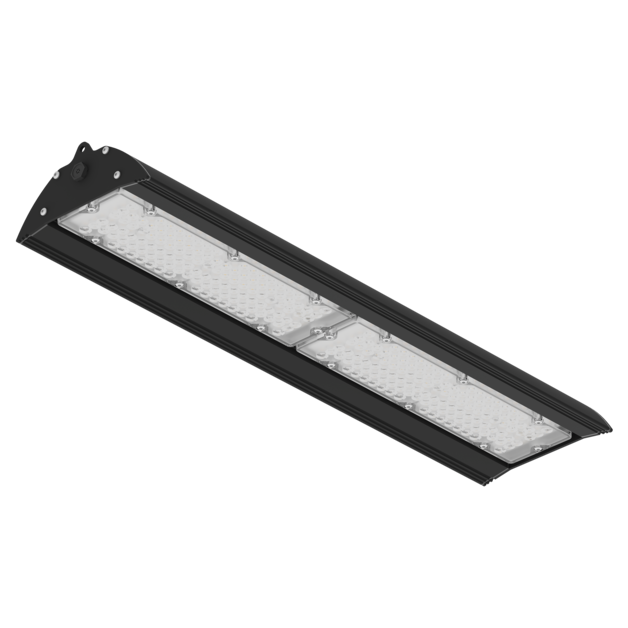

Hall LED

The luminaire Hall LED was designed for lighting high rooms where possibly the best energy efficiency is the most important matter.

Industrial

Hall LED

The luminaire Hall LED was designed for lighting high rooms where possibly the best energy efficiency is the most important matter.

Go to the variant list (142)

LED

IP65

yes

yes

yes

yes

Basic information:

Materials:

aluminium profile body (standard colours: white, gray, black), optics with three angles of light distribution: 60°, 90°, HR - High Rack, plastic diffuser, cable fitting and 2m long power cord, built-in element for the reduction of condensation by pressure compensation in power distribution systems

Accessories:

simple suspension, ceiling joint NT 1x and 2x, wall mounting bracket

Installation:

suspended, surface- or wall-mounted

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Industrial

Application:

Laboratory, Garage, Technical room, Security, Social room, Sport facilities, Parking and garage, Arcade, Car park, Sport field

Mounting type:

Ceiling mounted, Pendant

Technical data:

Luminaire power:

48 - 295 W

Luminaire luminous flux:

8445 - 51940 lm

Length:

350 mm, 665 mm, 985 mm, 1305 mm

See other technical data

Description of the product's family

Technical data

Mechanical data

Type of installation	Universal
Housing material	Aluminum

Optical data

Louver/ diffuser	LNS
UGR	18, 19, 20, 22, 23, 24, 25, 26

Electrical data

Light source	LED
Luminaire power	48 - 295 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Light source included	yes
Power factor	0.96
Type of driver	DALI, ON/OFF
Emergency module	option
Motion sensor	option

Information data

Net weight	1.7 - 5.7 kg
Colour	Black, Grey, White
Operating temperature range	-20 ... 45
Power and luminous flux tolerance	+/-10%
Inne	LNS
Info	1x 1305, 1x 350, 1x 665, 1x 985, 2x 350, 2x 665, 2x 985

Light data

Luminaire luminous flux	8445 - 51940 lm
Luminaire's luminous efficacy	150 - 187 lm/W
Light colour	White
Color rendering index	80, 90
Light distribution	DI
Class of luminaire	I
Beam angle	60 °, 90 °
Light output degradation	B10
Lumen maintenance	L80
MacAdam	SDCM 3
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840, 940

Certificates

Degree of protection (IP)	IP65
Impact resistance	IK08
Class of protection	I
Light source protection	yes
PZH	yes
CE	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Optics	Colour	Type of driver	Type of family
HH001.1177.840.A000 Copy the code Open in new window	48 W	8445 lm	176 lm/W	HR	White	ON/OFF	1X350 HR
HH001.2277.840.A000 Copy the code Open in new window	48 W	8445 lm	176 lm/W	HR	Grey	ON/OFF	1X350 HR
HH001.3377.840.A000 Copy the code Open in new window	48 W	8445 lm	176 lm/W	HR	Black	ON/OFF	1X350 HR
HH002.1177.840.A000 Copy the code Open in new window	48 W	8570 lm	179 lm/W	60°	White	ON/OFF	1X350 60°
HH002.2277.840.A000 Copy the code Open in new window	48 W	8570 lm	179 lm/W	60°	Grey	ON/OFF	1X350 60°
HH002.3377.840.A000 Copy the code Open in new window	48 W	8570 lm	179 lm/W	60°	Black	ON/OFF	1X350 60°
HH003.1177.840.A000 Copy the code Open in new window	48 W	8525 lm	178 lm/W	90°	White	ON/OFF	1X350 90°
HH003.2277.840.A000 Copy the code Open in new window	48 W	8525 lm	178 lm/W	90°	Grey	ON/OFF	1X350 90°
HH003.3377.840.A000 Copy the code Open in new window	48 W	8525 lm	178 lm/W	90°	Black	ON/OFF	1X350 90°
HH004.1177.840.A000 Copy the code Open in new window	68 W	12550 lm	185 lm/W	HR	White	ON/OFF	1X665 HR
HH004.1177.840.D000 Copy the code Open in new window	68 W	12550 lm	185 lm/W	HR	White	DALI	1X665 HR
HH004.2277.840.A000 Copy the code Open in new window	68 W	12550 lm	185 lm/W	HR	Grey	ON/OFF	1X665 HR
HH004.2277.840.D000 Copy the code Open in new window	68 W	12550 lm	185 lm/W	HR	Grey	DALI	1X665 HR
HH004.3377.840.A000 Copy the code Open in new window	68 W	12550 lm	185 lm/W	HR	Black	ON/OFF	1X665 HR
HH004.3377.840.D000 Copy the code Open in new window	68 W	12550 lm	185 lm/W	HR	Black	DALI	1X665 HR

Displaying items: 15 of 142

of 10

per page

Family datasheet

Download

Family datasheet extended

Download

Installation manual

641.94 KB

Download

EC Declaration of conformity

Download

Photometric file

30.14 KB

Download

Pobierz wszystkie pliki

Structural elements

Hall LED Motion sensor

Installation elements

Chain 2,0mm 1000mm

Hall LED 2x Surface mounting set

Hall LED 1x Surface mounting set

Hall LED 1x Wall mounting set

Protective grid

HALL LED protective grid
