Technical data Download
Industrial
Hall LED 1X350 60° 48W 8570lm 840 LNS Black
The luminaire Hall LED was designed for lighting high rooms where possibly the best energy efficiency is the most important matter.
Industrial
Hall LED 1X350 60° 48W 8570lm 840 LNS Black
The luminaire Hall LED was designed for lighting high rooms where possibly the best energy efficiency is the most important matter.
LED
DI
IP65
IK08
I
yes
yes
yes
yes
Basic information:
Index:
HH002.3377.840.A000
EAN:
5904349190499
Installation:
suspended, surface- or wall-mounted
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Industrial
Application:
Laboratory, Garage, Technical room, Security, Social room, Sport facilities, Parking and garage, Arcade, Car park, Sport field
Mounting type:
Ceiling mounted, Pendant
Technical data
Hall LED 1X350 60° 48W 8570lm 840 LNS Black
PRODUCT CODE
HH002.3377.840.A000
Copy the code
PRODUCT EAN
5904349190499
Copy the EAN code
Mechanical data
Type of installation Universal
Housing material Aluminum
Optical data
Louver/ diffuser LNS
Optical system 60°
UGR 24
Electrical data
Light source LED
Luminaire power 48 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Power factor 0.96
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 1.7 kg
Colour Black
Power and luminous flux tolerance +/-10%
Inne LNS
Info 1x 350

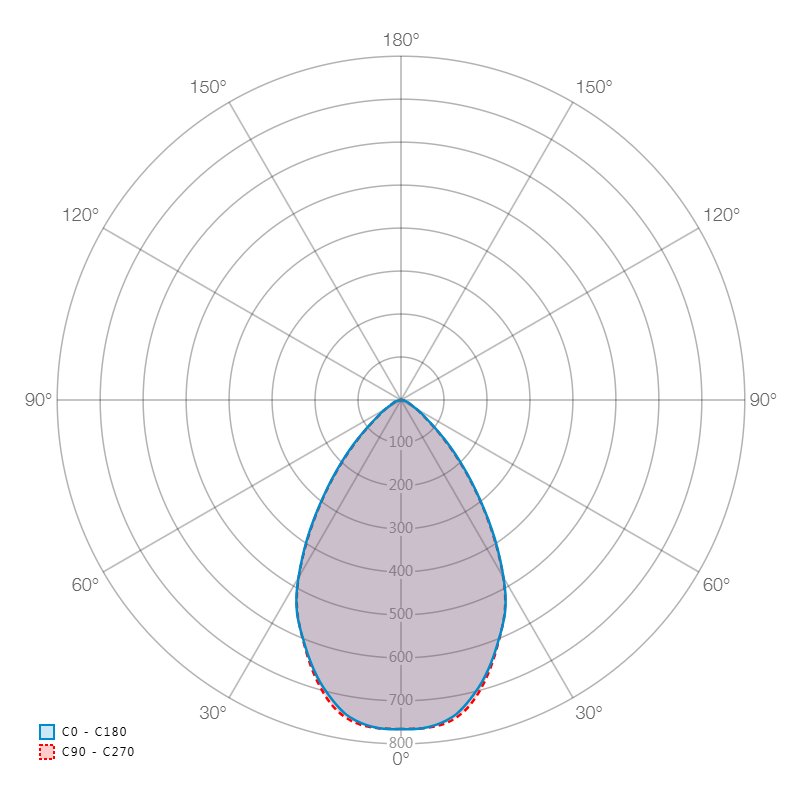

Light data
Luminaire luminous flux 8570 lm
Luminaire's luminous efficacy 179 lm/W
Light colour White
Color rendering index 80
Light distribution DI
Class of luminaire I
Beam angle 60°
Light output degradation B10
Lumen maintenance L80
MacAdam SDCM 3
Colour temperature 4000K
CRI & colour temperature 840
Certificates
Degree of protection (IP) IP65
Impact resistance IK08
Class of protection I
Light source protection yes
PZH yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W H
350 mm 170 mm 75 mm
L - Length
W - Width
H - Height / Depth
Download
Installation manual
641.94 KB
Download
Photometric file
1.9 KB
Download
Product card
1.05 MB
Download
Pobierz wszystkie pliki
