Architectural

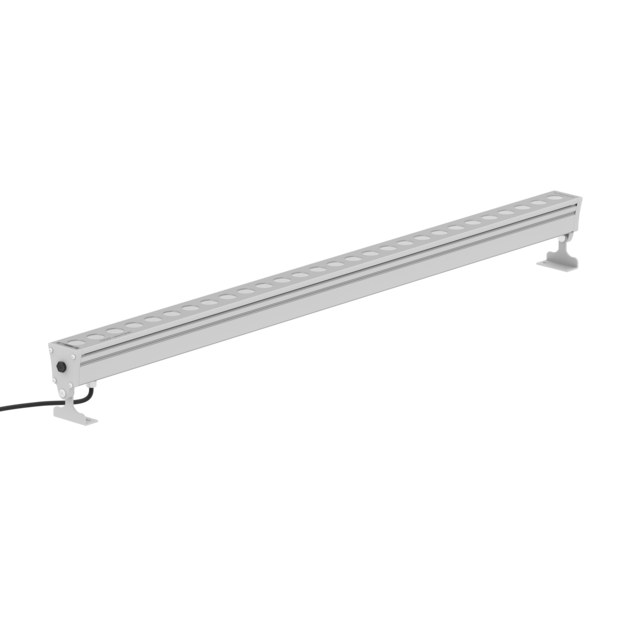

Ilumo LED 1240 AS° 30W 3560lm 840 LNS Grey STD
Modern, hermetic luminaire with multiple functions. ILUMO LED is equipped with the latest generation of LED sources closed in the aesthetic, aluminum housing with IP66 degree of protection.
Architectural
Ilumo LED 1240 AS° 30W 3560lm 840 LNS Grey STD
Modern, hermetic luminaire with multiple functions. ILUMO LED is equipped with the latest generation of LED sources closed in the aesthetic, aluminum housing with IP66 degree of protection.
LED
ON/OFF
DI
IP66
IK10
I
yes
yes
Basic information:
Index:
AI016.2277.840.A000
EAN:
5907671364972
Accessories:
Ilumo LED Cable
Installation:
for the ground, wall mounting, surface mounting
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Architectural
Application:
Laboratory, Garage, Technical room, Security, Social room, Sport facilities, Parking and garage, Arcade, Car park, Sport field
Mounting type:
Ceiling mounted, Pendant, Bollard
Technical data Download Accessories
Technical data
Ilumo LED 1240 AS° 30W 3560lm 840 LNS Grey STD
PRODUCT CODE
AI016.2277.840.A000
Copy the code
PRODUCT EAN
5907671364972
Copy the EAN code
Mechanical data
Type of installation For the ground
Housing material Aluminum
Optical data
Louver/ diffuser LNS
Electrical data
Light source LED
Luminaire power 30 W
Number of light sources 1
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 4.8 kg
Colour Grey
Operating temperature range -25 ... 40
Power and luminous flux tolerance +/-10%
Info AS
Light data
Luminaire luminous flux 3560 lm
Luminaire's luminous efficacy 119 lm/W
Light colour White
Color rendering index 80
Light distribution DI
Class of luminaire I
MacAdam SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h) 96 %
Colour temperature 4000K
CRI & colour temperature 840
Certificates
Degree of protection (IP) IP66
Impact resistance IK10
Class of protection I
Light source protection yes
CE yes
HACCP+ yes
Dimensions
L W H K
1240 mm 64 mm 86 mm 126 mm
L - Length
W - Width
H - Height / Depth
K - Additional dimension
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
630.62 KB
Download
EC Declaration of conformity
Download
Photometric file
2.71 KB
Download
Pobierz wszystkie pliki
Electric elements
Accessories
Ilumo LED Cable
