Technical data Download
Downlight

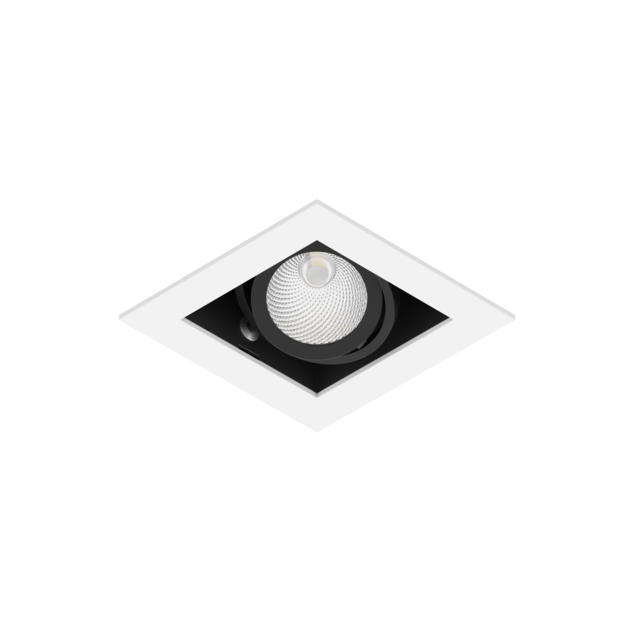

Kardo Mini LED 1X 8,5W 600lm 830 RF White STD
Multidirectional, accentuating lighting system with adjustable and independent spotlights designed for modular ceilings.
Downlight
Kardo Mini LED 1X 8,5W 600lm 830 RF White STD
Multidirectional, accentuating lighting system with adjustable and independent spotlights designed for modular ceilings.
LED
DI
IP20
IP20
II
yes
yes
yes
Basic information:
Index:
DP001.1166.830.A000
EAN:
5907769431654
Installation:
Into plaster cardboard and modular ceilings.
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Downlight
Application:
Corridor and staircase, Reception, Commercial premises, Conference room, Office
Mounting type:
Ceiling mounted
Technical data
Kardo Mini LED 1X 8,5W 600lm 830 RF White STD
PRODUCT CODE
DP001.1166.830.A000
Copy the code
PRODUCT EAN
5907769431654
Copy the EAN code
Mechanical data
Type of installation Recessed
Housing material Aluminum
Optical data
Louver/ diffuser RF
Reflector high gloss
UGR 16
Electrical data
Light source LED
LED modules 1x
Number of light sources 2
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 0.7 kg
Colour White
Operating temperature range 0 ... 35
Rotated model yes
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 600 lm
Luminaire's luminous efficacy 71 lm/W
Color rendering index 80
Direct-/indirect independently controlled no
Light distribution DI
Beam angle 35°
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) /top/ IP20
Degree of protection (IP) /bottom/ IP20
Impact resistance IK04
Class of protection II
CE yes
HACCP+ yes
EAC yes
Dimensions
L W H
116 mm 116 mm 81 mm
L - Length
W - Width
H - Height / Depth
Download
Installation manual
288.33 KB
Download
Photometric file
934 B
Download
Product card
