Downlight
Kardo Mini LED
Multidirectional, accentuating lighting system with adjustable and independent spotlights designed for modular ceilings.
Downlight

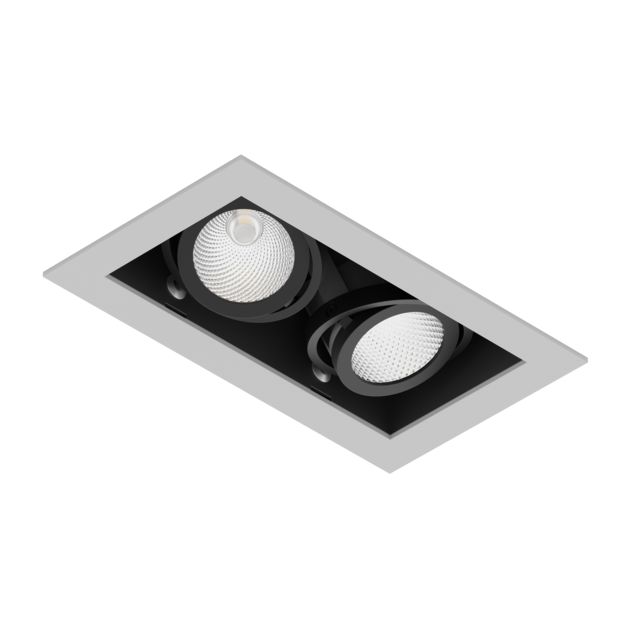

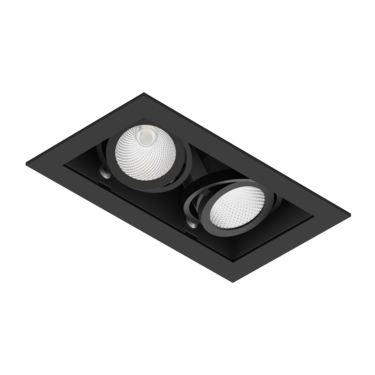

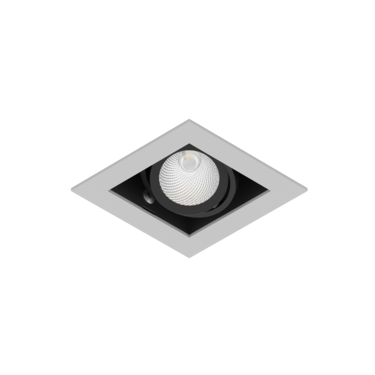

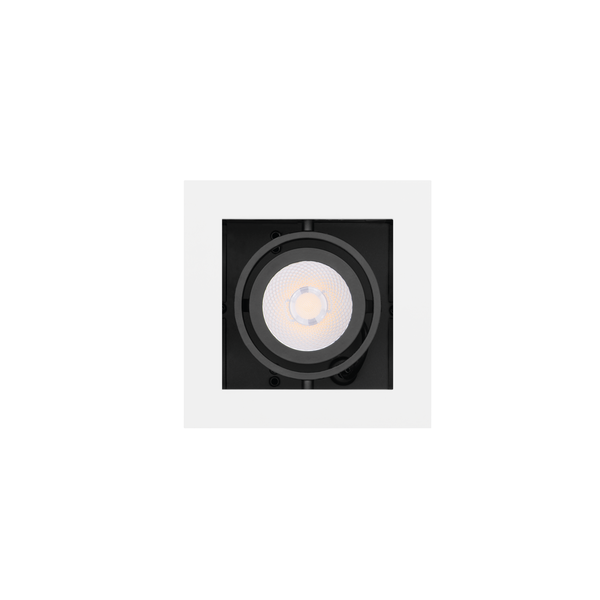

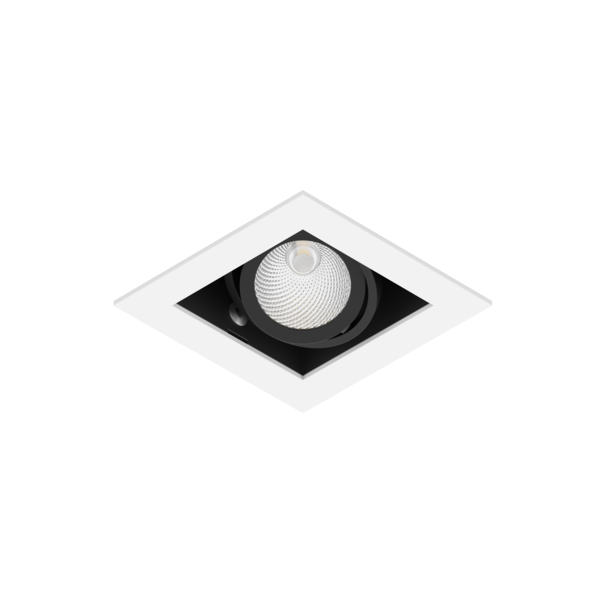

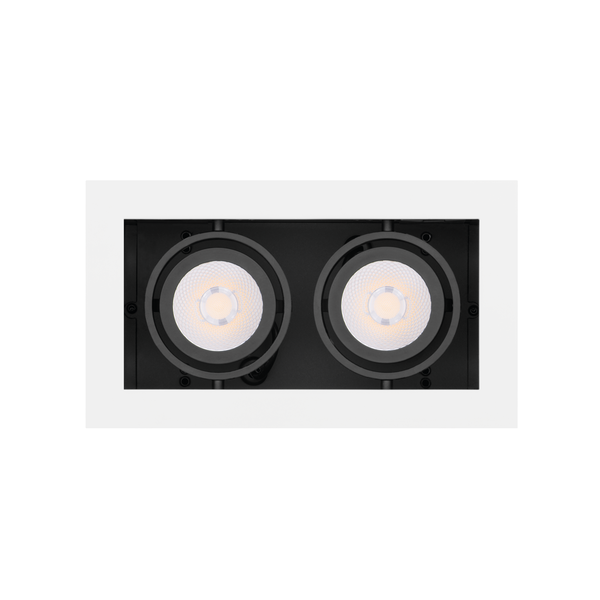

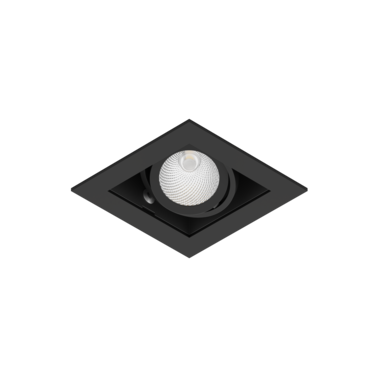

Kardo Mini LED
Multidirectional, accentuating lighting system with adjustable and independent spotlights designed for modular ceilings.
Go to the variant list (18)
LED
DI
IP20
IP20
yes
yes
yes
Basic information:
Materials:
Powder painted aluminum frame (standard color: white), aluminum rings, body made of steel sheet in black color, light sources adjustable in two planes.
Installation:
Into plaster cardboard and modular ceilings.
Power:
220 ... 240 V
Categorization:
Technical data:
Luminaire power:
15 W
Luminaire luminous flux:
600 - 1120 lm
Length:
116 mm, 203 mm
See other technical data
Technical data
Mechanical data
Type of installation Recessed
Housing material Aluminum
Optical data
Louver/ diffuser RF
Reflector high gloss
UGR 15, 16
Electrical data
Light source LED
Luminaire power 15 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Type of driver DALI, ON/OFF
Emergency module opcjonalnie
Motion sensor opcjonalnie
Information data
Net weight 0.7 - 1.2 kg
Colour Black, Grey, White
Operating temperature range 0 ... 35
Rotated model yes
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 600 - 1120 lm
Luminaire's luminous efficacy 71 - 75 lm/W
Color rendering index 80
Direct-/indirect independently controlled no
Light distribution DI
Beam angle 35 °
Colour temperature 3000K, 4000K
CRI & colour temperature 830, 840
Certificates
Degree of protection (IP) /top/ IP20
Degree of protection (IP) /bottom/ IP20
Impact resistance IK04
Class of protection I, II
CE yes
HACCP+ yes
EAC yes
How does the product indexing system work?
AA
002
.
22
11
.
830
.
D
0
0
0
Family
AA ALTO LED
AB ALTO WALL
Type
001 e.g.: 545 mm
002 e.g.: 1085 mm
Colour
11 WHITE RAL 9016
12 WHITE RAL 9010
22 GREY RAL 9006
33 BLACK RAL 9005
44 ANTHRACITE RALBG 452
45 ANTHRACITE RAL 7016
99 OTHER - PERSONALIZATION
Optical system
00 EMPTY
11 OPAL /MILK DIFFUSER/
22 MPRM /MICROPRISMATIC DIFFUSER/
23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/
24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/
33 PAR /PARABOLIC LOUVER/
34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/
44 mPARM /PARABOLIC MINI LOUVER METALLIZED/
45 PARW /PARABOLIC LOUVER WHITE/
46 mPARB /PARABOLIC MINI LOUVER BLACK/
66 RF /REFLECTOR/
67 RM /REFLECTOR METALLIZED/
68 RW /REFLECTOR WHITE/
77 LNS /LENS/
88 SH MAT /MATTE TEMPERED GLASS/
89 SH /TEMPERED GLASS/
CRI / Colour temp.
827
830 CRI ≥ 80; CCT 3000K
835 CRI ≥ 80; CCT 3500K
840 CRI ≥ 80; CCT 4000K
850 CRI ≥ 80; CCT 5000K
857 CRI ≥ 80; CCT 5700K
865 CRI ≥ 80; CCT 6500K
8TW CRI ≥ 80; Tunable white
927 CRI ≥ 90; CCT 2700K
930 CRI ≥ 90; CCT 3000K
935 CRI ≥ 90; CCT 3500K
940 CRI ≥ 90; CCT 4000K
950 CRI ≥ 90; CCT 5000K
957 CRI ≥ 90; CCT 5700K
965 CRI ≥ 90; CCT 6500K
9TW CRI ≥ 90; Tunable white
RGB RGB
Driver
A ON/OFF /WITHOUT REGULATION/
D HO /DRIVER WITH PREDEFINED SETTING/
H DSI
E HE /DRIVER WITH PREDEFINED SETTING/
F HO DALI /DRIVER WITH PREDEFINED SETTING/
G HE DALI /DRIVER WITH PREDEFINED SETTING/
K CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/
I CF /CORRIDOR FUNCTION - STEP DIMMING/
C DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/
X 1-10V /ADJUSTABLE/
S DMX
V sDIMM
Emergency module
0 WITHOUT EMERGENCY MODULE
1 EM1H ST /SELFTEST/
2 EM3H ST /SELFTEST/
3 EM1H BASIC
4 EM3H BASIC
5 EM1H PRO /DALI/
6 EM3H PRO /DALI/
Through wiring
0 WITHOUT THROUGH WIRING
1 TH3 /3-PHASE THROUGH WIRING/
2 TH5 /5-PHASE THROUGH WIRING/
3 TH7 /7-PHASE THROUGH WIRING/
4 WI /WIELAND/
5 WI TH /THROUGH WIRING/
Motion sensor
0 WITHOUT MOTION SENSOR
1 MW PRO /PASSIVE INFRARED - STEP DIMM/
2 PIR /INFRARED/
Technical data
Dimensions
Filtry
Filtrowanie po parametrach
Parametry
Luminous flux
Show products
CRI / Colour temp.
Select all
Reset
Show products
Driver
Select all
Reset
Show products
Colour
Select all
Reset
Show products
Length
Show products
LED modules
Select all
Reset
Show products
Class of protection
Select all
Reset
Show products
Type of family
Select all
Reset
Show products
Anuluj
Show products
Show products
Index
Luminaire power
Luminaire luminous flux
Luminaire's luminous efficacy
CRI & colour temperature
Colour
Type of driver
LED modules
Class of protection
Type of family
DP001.1166.830.A000
Copy the code
Open in new window
600 lm 71 lm/W 830
White
ON/OFF 1x II 8,5W 1X
DP001.1166.830.D000
Copy the code
Open in new window
600 lm 71 lm/W 830
White
DALI 1x II 8,5W 1X
DP001.1166.840.A000
Copy the code
Open in new window
620 lm 73 lm/W 840
White
ON/OFF 1x II 8,5W 1X
DP001.1166.840.D000
Copy the code
Open in new window
620 lm 73 lm/W 840
White
DALI 1x II 8,5W 1X
DP001.2266.830.D000
Copy the code
Open in new window
600 lm 71 lm/W 830
Grey
DALI 1x II 8,5W 1X
DP001.3366.830.A000
Copy the code
Open in new window
600 lm 71 lm/W 830
Black
ON/OFF 1x II 8,5W 1X
DP001.3366.830.D000
Copy the code
Open in new window
600 lm 71 lm/W 830
Black
DALI 1x II 8,5W 1X
DP001.3366.840.A000
Copy the code
Open in new window
620 lm 73 lm/W 840
Black
ON/OFF 1x II 8,5W 1X
DP001.3366.840.D000
Copy the code
Open in new window
620 lm 73 lm/W 840
Black
DALI 1x II 8,5W 1X
DP002.1166.830.A000
Copy the code
Open in new window
15 W 1080 lm 72 lm/W 830
White
ON/OFF 2x I 15W 2X
DP002.1166.830.D000
Copy the code
Open in new window
15 W 1080 lm 72 lm/W 830
White
DALI 2x I 15W 2X
DP002.1166.840.A000
Copy the code
Open in new window
15 W 1120 lm 75 lm/W 840
White
ON/OFF 2x I 15W 2X
DP002.1166.840.D000
Copy the code
Open in new window
15 W 1120 lm 75 lm/W 840
White
DALI 2x I 15W 2X
DP002.2266.830.A000
Copy the code
Open in new window
15 W 1080 lm 72 lm/W 830
Grey
ON/OFF 2x I 15W 2X
DP002.3366.830.A000
Copy the code
Open in new window
15 W 1080 lm 72 lm/W 830
Black
ON/OFF 2x I 15W 2X
Displaying items: 15 of 18
of 2
15
15
50
100

per page

Download
Installation manual
288.33 KB
Download
Photometric file
2.47 KB
Download
EC Declaration of conformity
Download
Karta rodziny
Download
Pobierz wszystkie pliki
