Downlight

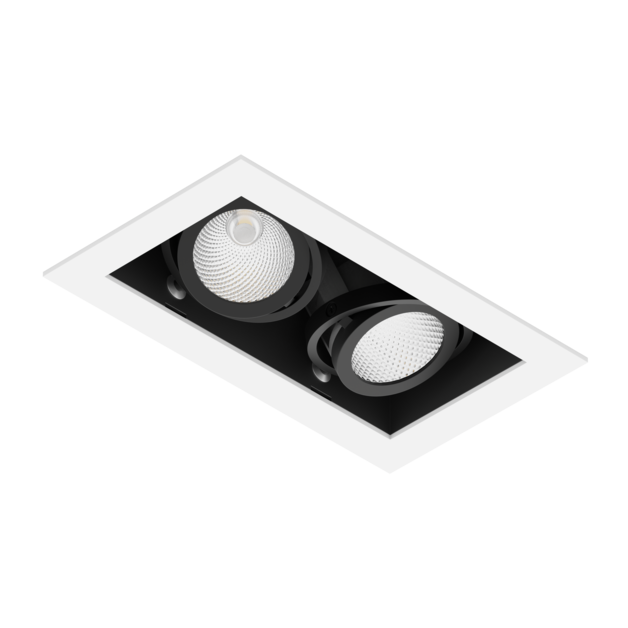

Kardo Mini LED 2X 15W 1080lm 830 RF White STD
Multidirectional, accentuating lighting system with adjustable and independent spotlights designed for modular ceilings.
Downlight
Kardo Mini LED 2X 15W 1080lm 830 RF White STD
Multidirectional, accentuating lighting system with adjustable and independent spotlights designed for modular ceilings.
LED
DI
IP20
IP20
I
yes
yes
yes
Basic information:
Index:
DP002.1166.830.A000
EAN:
5907769431678
Installation:
Into plaster cardboard and modular ceilings.
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Downlight
Application:
Corridor and staircase, Reception, Commercial premises, Conference room, Office
Mounting type:
Ceiling mounted
Technical data Download
Technical data
Kardo Mini LED 2X 15W 1080lm 830 RF White STD
PRODUCT CODE
DP002.1166.830.A000
Copy the code
PRODUCT EAN
5907769431678
Copy the EAN code
Mechanical data
Type of installation Recessed
Housing material Aluminum
Optical data
Louver/ diffuser RF
Reflector high gloss
UGR 15
Electrical data
Light source LED
Luminaire power 15 W
LED modules 2x
Number of light sources 2
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 1.2 kg
Colour White
Operating temperature range 0 ... 35
Rotated model yes
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 1080 lm
Luminaire's luminous efficacy 72 lm/W
Color rendering index 80
Direct-/indirect independently controlled no
Light distribution DI
Beam angle 35°
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) /top/ IP20
Degree of protection (IP) /bottom/ IP20
Impact resistance IK04
Class of protection I
CE yes
HACCP+ yes
EAC yes
Dimensions
L W H
203 mm 116 mm 81 mm
L - Length
W - Width
H - Height / Depth
