Latte LED IP40

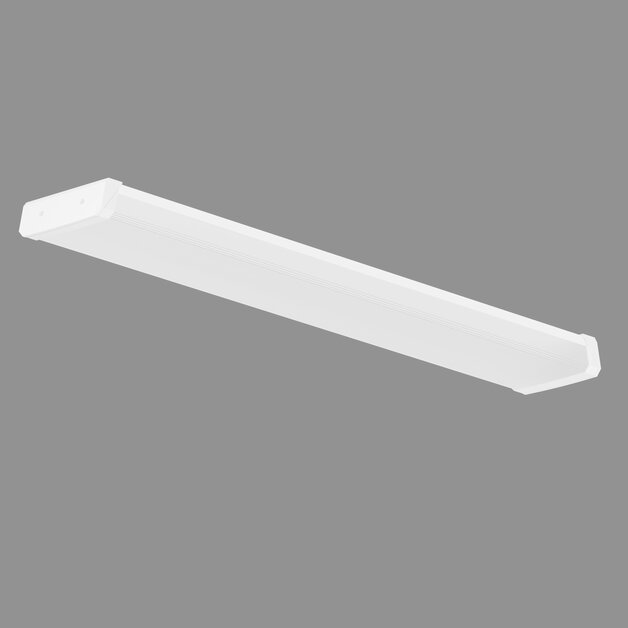

Classic luminaire with diffuser based on high quality LED light sources for general lighting.
The luminaire is ENEC certified.

Industrial

Latte LED IP40

Classic luminaire with diffuser based on high quality LED light sources for general lighting.
The luminaire is ENEC certified.

Go to the variant list (66)

LED

IP40

IK07

yes

yes

yes

yes

Basic information:

Materials:

Powder painted, steel sheet base in white color, end caps made of PC, semi-transparent grooven inside diffuser made of impact-resistant PMMA.

Accessories:

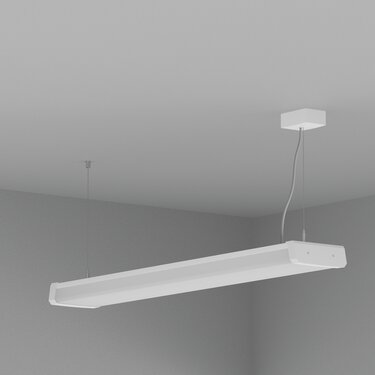

suspension (simple 1pcs., electric 1pcs.)

Installation:

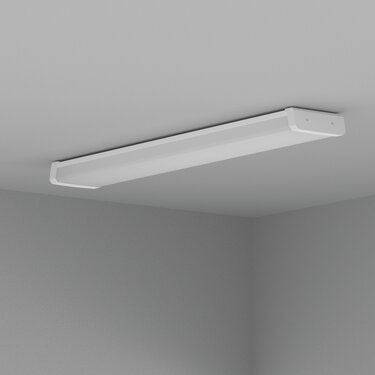

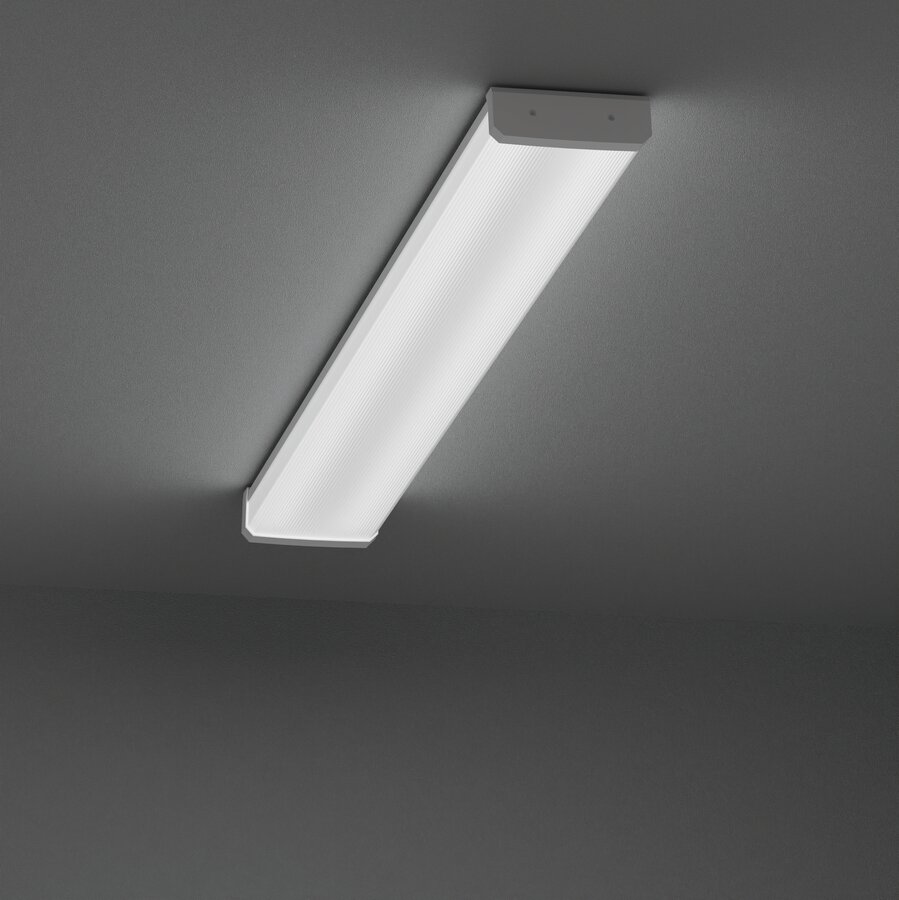

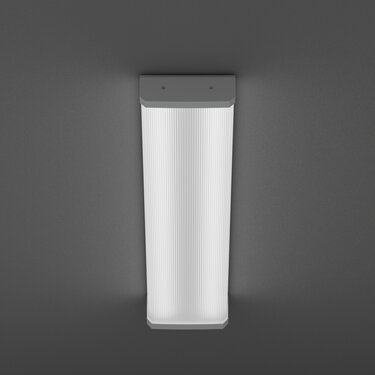

Ceiling mounted, suspended

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Industrial

Application:

Corridor and staircase, Reception

Mounting type:

Ceiling mounted, Wall mounted, Pendant

Technical data:

Luminaire power:

13 - 39 W

Luminaire luminous flux:

1550 - 5620 lm

Length:

565 mm, 1060 mm, 1555 mm

See other technical data

Description of the product's family

LATTE LED IP40 has an ENEC certificate issued by the independent testing laboratory no. 30.

The ENEC certification has been granted exclusively for the product types listed in the certificate, which is available for download on our website. Any interference with the structure, components, or modification of product parameters invalidates the use of the ENEC certification for those units. Please refer to the certification documentation to confirm product compliance with ENEC requirements.

For more information please contact our sales representative.

Technical data

Mechanical data

Type of installation	Universal
Designed for light-line	yes

Optical data

Louver/ diffuser	OPAL
Diffuser colour	White
Diffuser material	Opal/mat plastic
UGR	18, 19

Electrical data

Light source	LED
Luminaire power	13 - 39 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Light source included	yes
Power factor	0.96
Type of driver	DALI, ON/OFF
Emergency module	option
Motion sensor	option

Information data

Net weight	1.3 - 3.1 kg
Colour	White
Power and luminous flux tolerance	+/-10%

Light data

Luminaire luminous flux	1550 - 5620 lm
Luminaire's luminous efficacy	119 - 144 lm/W
Luminaire's luminous efficiency	91
Light colour	White
Color rendering index	80, 90
Light distribution	Medium-stream
Light distribution	DI
MacAdam	SDCM 3
Lifetime L80B10 @25°C	100000 h
Lifetime L90B10 @25°C	64000 h
Lamp Lumen Maintenance Factor (after 60 000h)	85 %
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840, 930, 940

Certificates

Degree of protection (IP)	IP40
Impact resistance	IK07
Class of protection	I
Power Flicker	=< 3%
Light source protection	yes
PZH	yes
CE	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

Filtry

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /MATTE REFLECTOR/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Optical system]	CRI & colour temperature	Colour	Type of driver	Emergency module	Type of family
DX004.1111.830.A000 Copy the code Open in new window	13 W	1820 lm	140 lm/W	OPAL	830	White	ON/OFF	No	13W 565 IP40
DX004.1111.830.A001 Copy the code Open in new window	13 W	1820 lm	140 lm/W	OPAL	830	White	ON/OFF	No	13W 565 IP40
DX004.1111.830.D000 Copy the code Open in new window	13 W	1820 lm	140 lm/W	OPAL	830	White	DALI	No	13W 565 IP40
DX004.1111.840.A000 Copy the code Open in new window	13 W	1870 lm	144 lm/W	OPAL	840	White	ON/OFF	No	13W 565 IP40
DX004.1111.840.A001 Copy the code Open in new window	13 W	1870 lm	144 lm/W	OPAL	840	White	ON/OFF	No	13W 565 IP40
DX004.1111.840.D000 Copy the code Open in new window	13 W	1870 lm	144 lm/W	OPAL	840	White	DALI	No	13W 565 IP40
DX004.1111.930.A000 Copy the code Open in new window	13 W	1550 lm	119 lm/W	OPAL	930	White	ON/OFF	No	13W 565 IP40
DX004.1111.930.D000 Copy the code Open in new window	13 W	1550 lm	119 lm/W	OPAL	930	White	DALI	No	13W 565 IP40
DX004.1111.940.A000 Copy the code Open in new window	13 W	1590 lm	122 lm/W	OPAL	940	White	ON/OFF	No	13W 565 IP40
DX004.1111.940.D000 Copy the code Open in new window	13 W	1590 lm	122 lm/W	OPAL	940	White	DALI	No	13W 565 IP40
DX005.1111.830.A000 Copy the code Open in new window	26 W	3640 lm	140 lm/W	OPAL	830	White	ON/OFF	No	26W 1060 IP40
DX005.1111.830.A001 Copy the code Open in new window	26 W	3640 lm	140 lm/W	OPAL	830	White	ON/OFF	No	26W 1060 IP40
DX005.1111.830.A100 Copy the code Open in new window	26 W	3640 lm	140 lm/W	OPAL	830	White	ON/OFF	EM1H ST	26W 1060 IP40
DX005.1111.830.A200 Copy the code Open in new window	26 W	3640 lm	140 lm/W	OPAL	830	White	ON/OFF	EM3H ST	26W 1060 IP40
DX005.1111.830.D000 Copy the code Open in new window	26 W	3640 lm	140 lm/W	OPAL	830	White	DALI	No	26W 1060 IP40

Displaying items: 15 of 66

of 5

per page

Family datasheet

Download

Family datasheet extended

Download

Installation manual

390.14 KB

Download

EC Declaration of conformity

Download

Photometric file

5 KB

Download

Pobierz wszystkie pliki

Electric elements

Electric suspension kit

Installation elements

Suspension kit 1x
