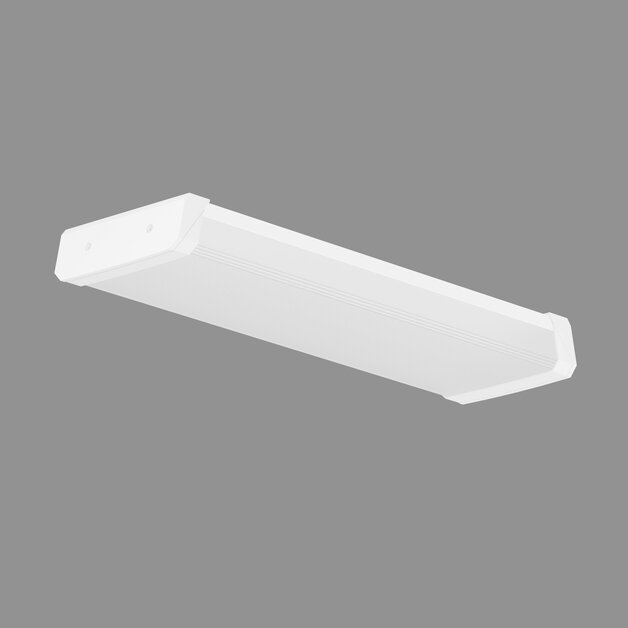

Latte LED 565 IP40 13W 1820lm 830 OPAL White STD
Classic luminaire with diffuser based on high quality LED light sources for general lighting.
Industrial
Latte LED 565 IP40 13W 1820lm 830 OPAL White STD
Classic luminaire with diffuser based on high quality LED light sources for general lighting.
LED
DI
IP40
I
yes
yes
yes
yes
Basic information:
Index:
DX004.1111.830.A000
EAN:
5907671373264
Accessories:
Electric suspension kit, Suspension kit 1x
Installation:
Ceiling mounted, suspended
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Application:
Mounting type:
Technical data
Latte LED 565 IP40 13W 1820lm 830 OPAL White STD
PRODUCT CODE
DX004.1111.830.A000
Copy the code
PRODUCT EAN
5907671373264
Copy the EAN code
Mechanical data
Type of installation Universal
Housing material Steel sheet / plastic
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
UGR 18
Electrical data
Light source LED
Luminaire power 13 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Power factor 0.96
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 1.3 kg
Colour White
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 1820 lm
Luminaire's luminous efficacy 140 lm/W
Luminaire's luminous efficiency 91
Light colour White
Color rendering index 80
Light distribution Średniostrumieniowy
Light distribution DI
Light output degradation B10
Lumen maintenance L80
MacAdam SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) IP40
Impact resistance IK07
Class of protection I
Power Flicker =< 3%
Light source protection yes
PZH yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W H
565 mm 161 mm 60 mm
L - Length
W - Width
H - Height / Depth
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
390.14 KB
Download
EC Declaration of conformity
Download
Photometric file
1.39 KB
Download
Pobierz wszystkie pliki
