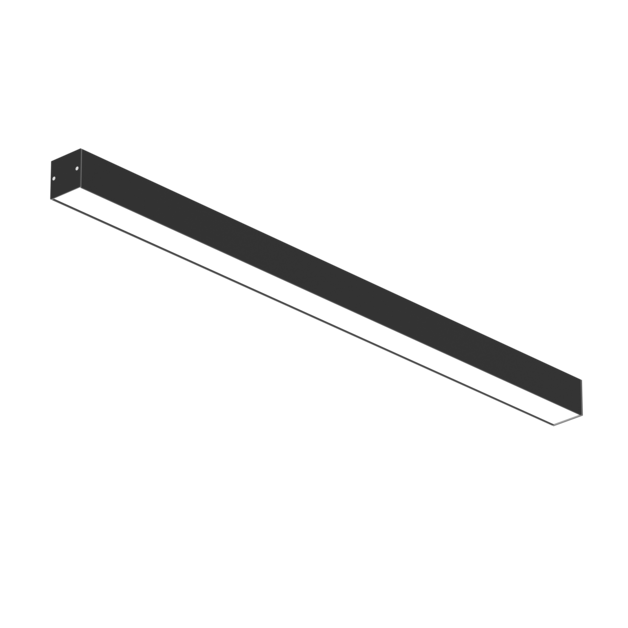

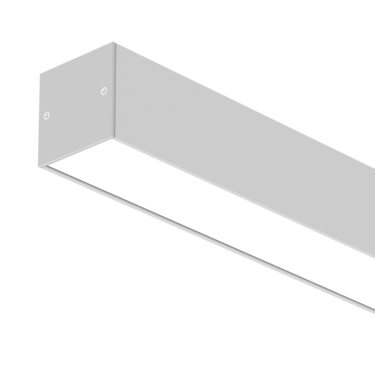

VIP IP44 LED

VIP series lighting luminaire of direct light distribution and increased tightness. Made of aluminum profile of high endurance, suitable for LED. Cannot be combined in lines. Luminaire was designed for installations under the ledges and roofs, in the underpasses, bathrooms and any other places requiring increased degree of tightness. End caps in set. Linear joint allows connecting to the lighting line without removing end caps!

Linear

VIP IP44 LED

VIP series lighting luminaire of direct light distribution and increased tightness. Made of aluminum profile of high endurance, suitable for LED. Cannot be combined in lines. Luminaire was designed for installations under the ledges and roofs, in the underpasses, bathrooms and any other places requiring increased degree of tightness. End caps in set. Linear joint allows connecting to the lighting line without removing end caps!

Go to the variant list (405)

LED

IP44

yes

yes

yes

yes

Basic information:

Materials:

Electrostatically painted aluminum profile (gray color as a standard). OPAL or MPRM diffuser. NOTE: the cable for connecting into a lighting line is not supplied with the luminaires. TH5 wiring blocks are located at both ends of the luminaire. Connecting the luminaires in a line should be done with an external cable led outside the adjacent luminaires.

Accessories:

Suspension (regular or electric), wall joint for 30cm SHORT version, ceiling joint, linear joint

Installation:

Suspended, surface mounted (ceiling joint for 30cm version included), wall mounted

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Linear

Application:

Office, Conference room, Corridor and staircase, Reception, Commercial premises, Lecture hall, Classroom, Computer lab

Mounting type:

Ceiling mounted, Pendant

Technical data:

Luminaire power:

7 - 31 W

Luminaire luminous flux:

660 - 4170 lm

Length:

300 mm, 589 mm, 669 mm, 879 mm, 959 mm, 1169 mm, 1249 mm

See other technical data

Technical data

Mechanical data

Type of installation	Ceiling mounted, Universal
Housing material	Aluminum
Designed for light-line	yes

Optical data

Louver/ diffuser	MPRM, OPAL
Reflector	high gloss
UGR	22, 23

Electrical data

Light source	LED
Luminaire power	7 - 31 W
Number of light sources	1
Type of equipment	AC
Voltage rating	220 ... 240 V
Light source included	yes
Type of driver	1-10V, CASAMBI, DALI, ON/OFF, sDIMM
Emergency module	option
Motion sensor	option

Information data

Net weight	1 - 3.6 kg
Colour	Anthracite, Black, Grey, White
Operating temperature range	-15 ... 40
Power and luminous flux tolerance	+/-10%
Info	MPRM, OPAL

Light data

Luminaire luminous flux	660 - 4170 lm
Luminaire's luminous efficacy	94 - 148 lm/W
Light colour	White
Color rendering index	80, 90
Light distribution	Wide beam, Średniostrumieniowy
Light distribution	DI
Class of luminaire	I
Light output degradation	B10
Lumen maintenance	L80
Lifetime	54000 h
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	85 %
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840, 930, 940

Certificates

Degree of protection (IP)	IP44
Impact resistance	IK04
Class of protection	I
Light source protection	yes
PZH	yes
CE	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Układ optyczny]	CRI & colour temperature	Colour	Type of driver	Emergency module	Through wiring	Motion sensor	Type of family
BL001.1111.830.A000 Copy the code Open in new window	7 W	765 lm	109 lm/W	OPAL	830	White	ON/OFF	No	No	No	300mm
BL001.1111.840.A000 Copy the code Open in new window	7 W	775 lm	111 lm/W	OPAL	840	White	ON/OFF	No	No	No	300mm
BL001.1111.930.A000 Copy the code Open in new window	7 W	660 lm	94 lm/W	OPAL	930	White	ON/OFF	No	No	No	300mm
BL001.1111.940.A000 Copy the code Open in new window	7 W	670 lm	96 lm/W	OPAL	940	White	ON/OFF	No	No	No	300mm
BL001.2211.830.A000 Copy the code Open in new window	7 W	765 lm	109 lm/W	OPAL	830	Grey	ON/OFF	No	No	No	300mm
BL001.2211.840.A000 Copy the code Open in new window	7 W	775 lm	111 lm/W	OPAL	840	Grey	ON/OFF	No	No	No	300mm
BL001.2211.930.A000 Copy the code Open in new window	7 W	660 lm	94 lm/W	OPAL	930	Grey	ON/OFF	No	No	No	300mm
BL001.2211.940.A000 Copy the code Open in new window	7 W	670 lm	96 lm/W	OPAL	940	Grey	ON/OFF	No	No	No	300mm
BL001.3311.830.A000 Copy the code Open in new window	7 W	765 lm	109 lm/W	OPAL	830	Black	ON/OFF	No	No	No	300mm
BL001.3311.840.A000 Copy the code Open in new window	7 W	775 lm	111 lm/W	OPAL	840	Black	ON/OFF	No	No	No	300mm
BL001.3311.930.A000 Copy the code Open in new window	7 W	660 lm	94 lm/W	OPAL	930	Black	ON/OFF	No	No	No	300mm
BL001.3311.940.A000 Copy the code Open in new window	7 W	670 lm	96 lm/W	OPAL	940	Black	ON/OFF	No	No	No	300mm
BL002.1111.830.A060 Copy the code Open in new window	13 W	1815 lm	140 lm/W	OPAL	830	White	ON/OFF	No	LW	No	589mm
BL002.1111.830.A061 Copy the code Open in new window	13 W	1815 lm	140 lm/W	OPAL	830	White	ON/OFF	No	LW	MW	589mm
BL002.1111.830.D060 Copy the code Open in new window	13 W	1815 lm	140 lm/W	OPAL	830	White	DALI	No	LW	No	589mm
