VIP Mini LED

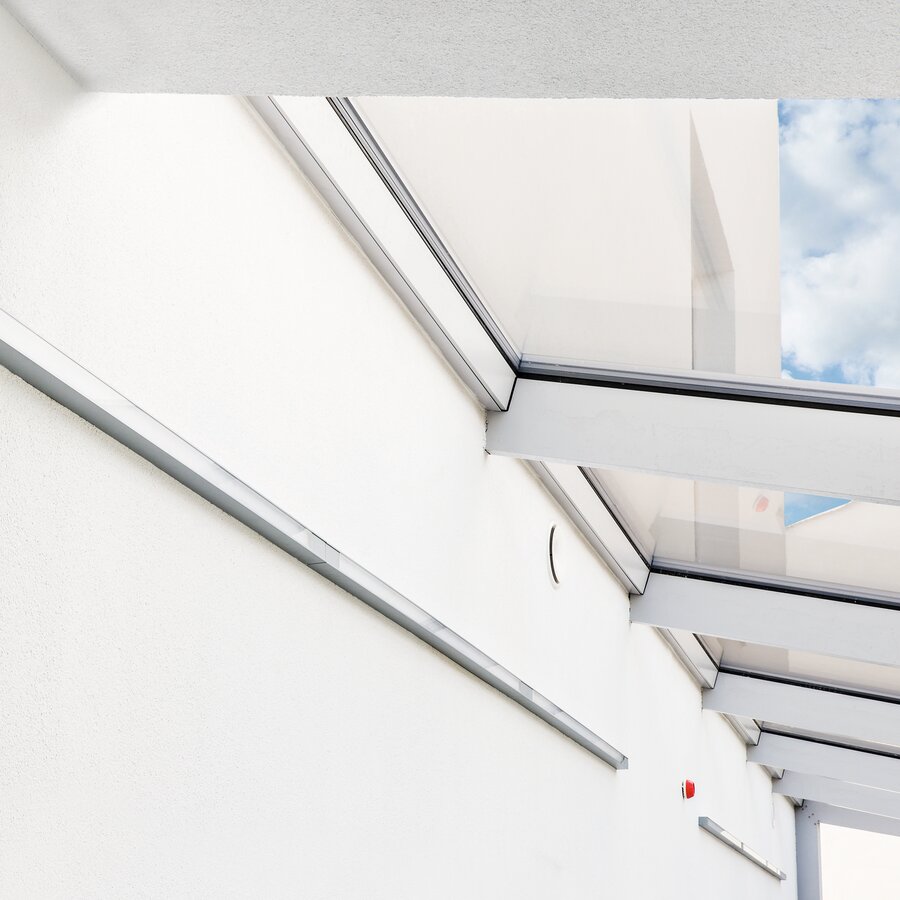

VIP Mini, a new, subtle and miniaturized lighting luminaire, is enlarging the offer of VIP products. The body made of aluminum profile, the direct (DI) and indirect (IN) lighting beam. Light source: LEDs. As in the case of VIP, the additional accessories allow various configurations of lighting luminaires.

Linear

VIP Mini LED

VIP Mini, a new, subtle and miniaturized lighting luminaire, is enlarging the offer of VIP products. The body made of aluminum profile, the direct (DI) and indirect (IN) lighting beam. Light source: LEDs. As in the case of VIP, the additional accessories allow various configurations of lighting luminaires.

Go to the variant list (872)

LED

IP20

yes

yes

yes

yes

Basic information:

Materials:

Powder painted aluminum profile (standard color: grey); microprismatic diffuser (MPRM).

Accessories:

Joints (linear, 90°, T, X, wall, ceiling); suspensions (simple, electric), end caps.

Installation:

Surface mounted, wall mounted, suspended

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Linear

Application:

Office, Conference room, Corridor and staircase, Reception, Commercial premises, Lecture hall, Classroom, Computer lab

Mounting type:

Ceiling mounted, Pendant, Wall mounted

Technical data:

Luminaire power:

17 - 52 W

Luminaire luminous flux:

1760 - 7810 lm

Length:

585 mm, 875 mm, 1165 mm, 1320 mm, 1455 mm, 1620 mm, 1745 mm, 2035 mm

See other technical data

Technical data

Mechanical data

Type of installation	Suspended, Universal
Housing material	Aluminum
Designed for light-line	yes

Optical data

Louver/ diffuser	MPOP, MPRM, OPAL
UGR	22, 25

Electrical data

Light source	LED
Luminaire power	17 - 52 W
Number of light sources	1
Type of equipment	AC
Voltage rating	220 ... 240 V
Light source included	yes
Type of driver	DALI, ON/OFF
Emergency module	opcjonalnie
Motion sensor	opcjonalnie

Information data

Net weight	1 - 2.6 kg
Colour	Anthracite, Black, Grey, White
Operating temperature range	-15 ... 40
Power and luminous flux tolerance	+/-10%
Info	DI, IN

Light data

Luminaire luminous flux	1760 - 7810 lm
Luminaire's luminous efficacy	104 - 150 lm/W
Light colour	White
Color rendering index	80, 90
Light distribution	Średniostrumieniowy
Light distribution	DI
Class of luminaire	I
Light output degradation	B10
Lumen maintenance	L80
Lifetime	54000 h
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	85 %
Colour temperature	2700-6500K, 3000K, 4000K
CRI & colour temperature	830, 840, 8TW, 930, 940

Certificates

Degree of protection (IP)	IP20
Impact resistance	IK04
Class of protection	I
Power Flicker	=< 3%
Light source protection	yes
PZH	yes
CE	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Układ optyczny]	CRI & colour temperature	Colour	Type of driver	Through wiring	Type of family
BO001.1111.830.A000 Copy the code Open in new window	17 W	2070 lm	122 lm/W	OPAL	830	White	ON/OFF	No	585mm
BO001.1111.830.A010 Copy the code Open in new window	17 W	2070 lm	122 lm/W	OPAL	830	White	ON/OFF	TH3	585mm
BO001.1111.830.A020 Copy the code Open in new window	17 W	2070 lm	122 lm/W	OPAL	830	White	ON/OFF	TH5	585mm
BO001.1111.830.D000 Copy the code Open in new window	17 W	2070 lm	122 lm/W	OPAL	830	White	DALI	No	585mm
BO001.1111.830.D010 Copy the code Open in new window	17 W	2070 lm	122 lm/W	OPAL	830	White	DALI	TH3	585mm
BO001.1111.830.D020 Copy the code Open in new window	17 W	2070 lm	122 lm/W	OPAL	830	White	DALI	TH5	585mm
BO001.1111.840.A000 Copy the code Open in new window	17 W	2140 lm	126 lm/W	OPAL	840	White	ON/OFF	No	585mm
BO001.1111.840.A010 Copy the code Open in new window	17 W	2140 lm	126 lm/W	OPAL	840	White	ON/OFF	TH3	585mm
BO001.1111.840.A020 Copy the code Open in new window	17 W	2140 lm	126 lm/W	OPAL	840	White	ON/OFF	TH5	585mm
BO001.1111.840.D000 Copy the code Open in new window	17 W	2140 lm	126 lm/W	OPAL	840	White	DALI	No	585mm
BO001.1111.840.D010 Copy the code Open in new window	17 W	2140 lm	126 lm/W	OPAL	840	White	DALI	TH3	585mm
BO001.1111.840.D020 Copy the code Open in new window	17 W	2140 lm	126 lm/W	OPAL	840	White	DALI	TH5	585mm
BO001.1111.930.A000 Copy the code Open in new window	17 W	1760 lm	104 lm/W	OPAL	930	White	ON/OFF	No	585mm
BO001.1111.930.A010 Copy the code Open in new window	17 W	1760 lm	104 lm/W	OPAL	930	White	ON/OFF	TH3	585mm
BO001.1111.930.A020 Copy the code Open in new window	17 W	1760 lm	104 lm/W	OPAL	930	White	ON/OFF	TH5	585mm
